CON-E-CO® SLP Transit Mix

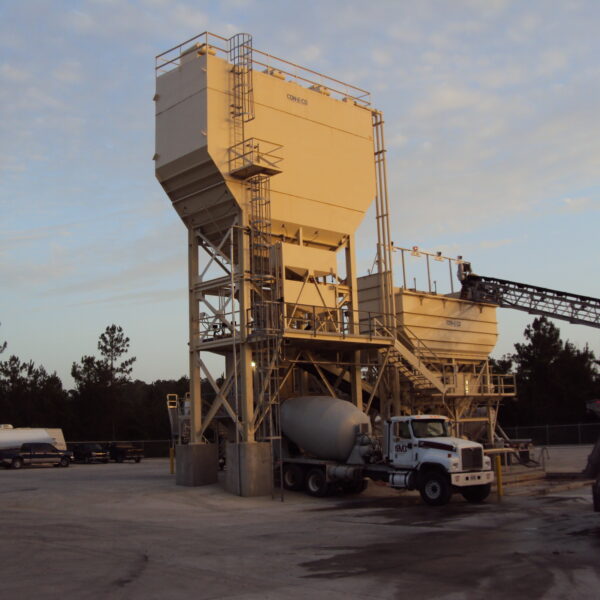

A concrete batching plant with large storage silos and a conveyor system, surrounded by cement mixer trucks and trailers, set against a backdrop of trees and a partly cloudy sky at sunset.

A custom transit mix batch plant with an oversized 12 cubic yard batcher and aggregate bin capacity up to 350 cubic yards available in belted or gravity aggregate feed into ready mix trucks

Download Brochure
  • The SLP Transit Mix batch plant features faster erection and lower cost due to its all-modular construction.
  • Greater storage capacities and more storage options to meet the needs of your operations.
  • Large-capacity overhead aggregate storage bin
  • Low profile design reduces height and minimizes foundation expense
  • Aggregate batch transfer conveyor to reduce bin height
  • Hot dipped galvanized stairways, ladders, cages, roof railings and conveyors
  • High Production Ready Mix
  • Permanent Paving plant

Features

  • Aggregate Storage: 150 cubic yard capacity across four compartments
  • Aggregate Batcher: 12-cubic-yard capacity with quick discharge design
  • Cement Storage: up to 3,500 bbl / four compartment main cement bin
  • Cement Batcher: 12 cubic-yard capacity LO-PRO or Gravity Cement Scale
  • Batch Belt Conveyor: 30 inch-wide, vulcanized splice conveyor
  • Water System: 3-inch water meter with Batched water reservoir piped directly to discharge
  • Electrical Power: UL Listed NEMA-rated power panel with lockable main disconnect Pre-wired starters for all electric motors

Options

  • Up to 350 cubic yards of Aggregate storage across eight compartments
  • 36″ Batch Belt
  • Cement from four to eight compartments across up to two bins
  • Rear Cement Storage either 1,840 bbl to 3,500 bbl rectangular cement bin or round silo
  • Custom-engineered site layouts
  • Central or individual and mixer dust control systems for clean operations
  • Safety-focused stairway work platforms and ladder systems for ease of maintenance
  • Holding hopper for increased simultaneous production flow and loading
  • Custom material handling systems (e.g., conveyors, turnheads, radial stackers)

Real-World Results

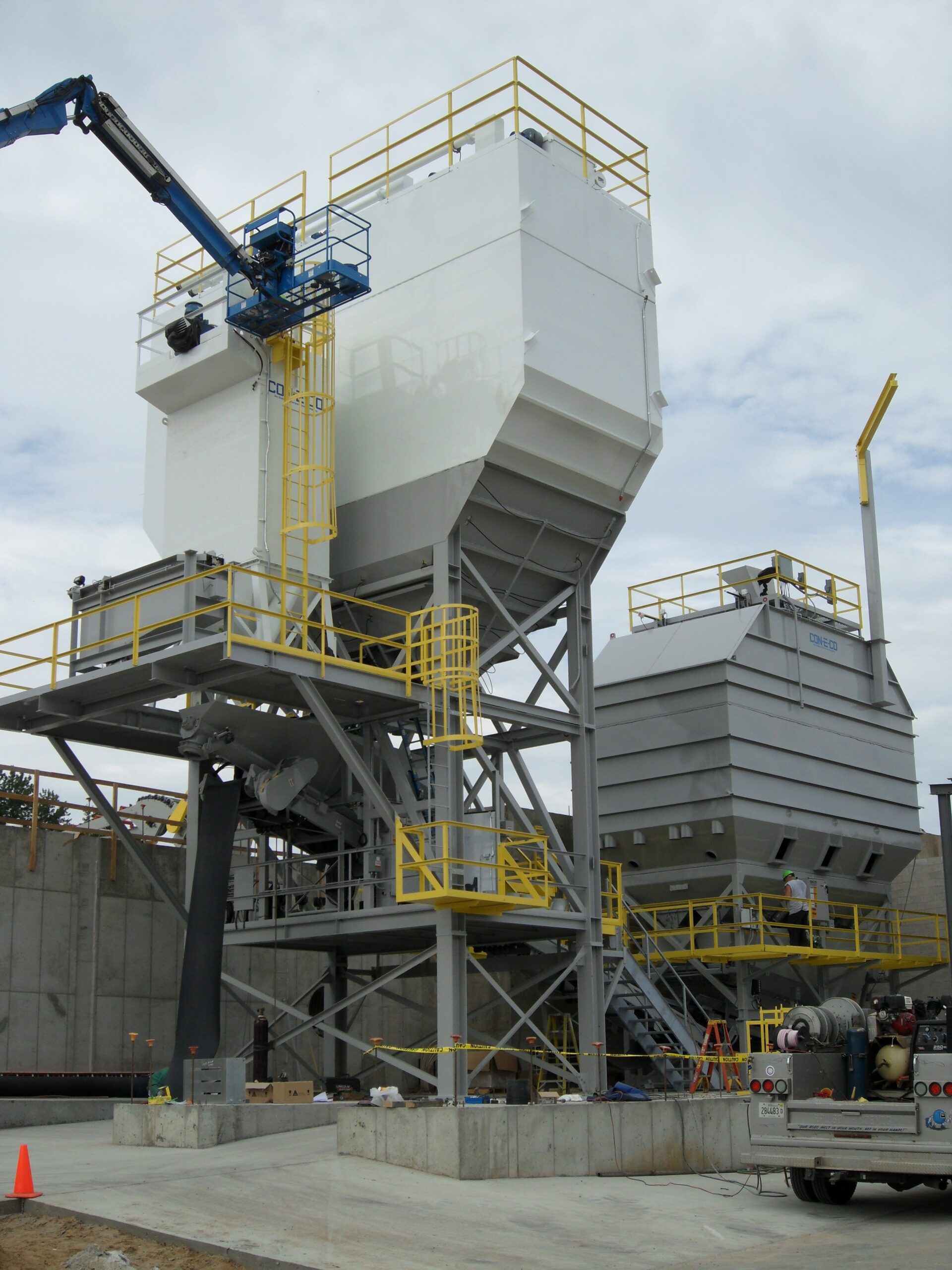

A large industrial transit mix concrete batch plant structure with white storage silos and yellow railings, supported by a gray steel framework. A blue crane and workers are on site, and a truck is parked nearby. The sky is cloudy.
A concrete batching plant with large storage silos and a conveyor system, surrounded by cement mixer trucks and trailers, set against a backdrop of trees and a partly cloudy sky at sunset.
A large industrial plant with silos and conveyor belts sits on a gravel lot, with two red trucks and a person’s shadow in the foreground. Leafless trees and a blue sky are in the background.

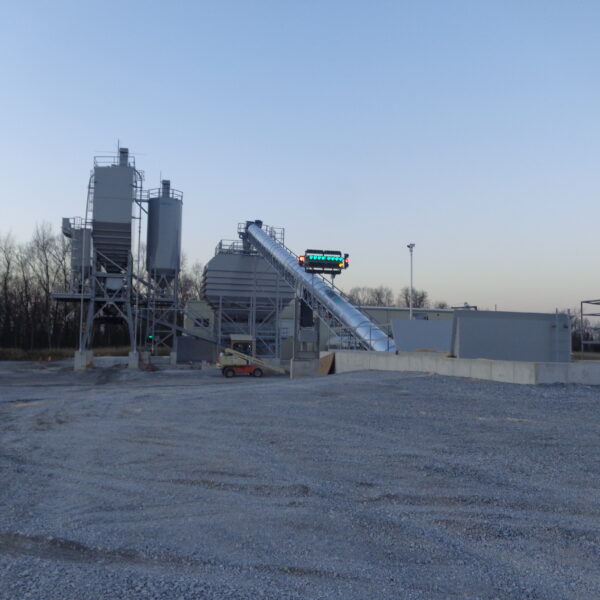

Industrial concrete batching plant with silos, conveyor, and structures on a gravel lot; bare trees and clear sky in the background.
