CON-E-CO® SLP HRM

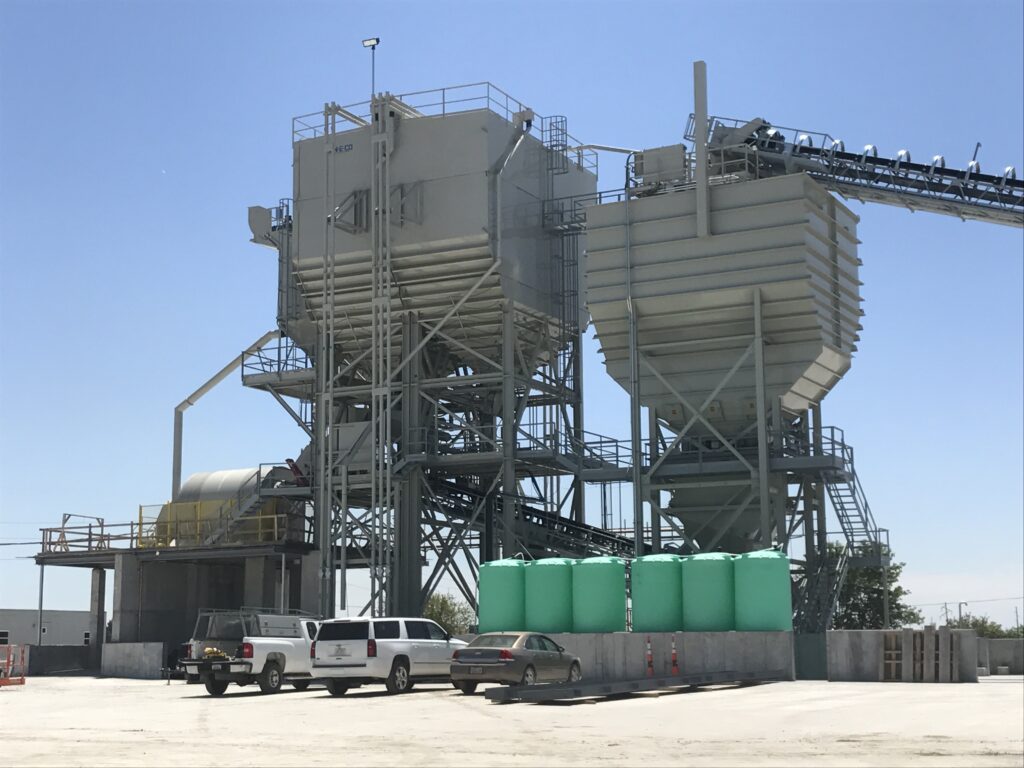

A concrete batching plant with large silos, conveyor belts, and green storage tanks. Several vehicles, including trucks and a car, are parked in front on a clear, sunny day.

For custom plant sites designed for the largest aggregate and cement storage plants available requiring reliable, high-production concrete batching out of a CON-E-CO Horizontal Reversing Mixer.

Download Brochure
  • Engineered for customizable jobsite-specific configurability
  • High-capacity systems with multiple discharge lanes and gravity-fed rectangular bins
  • Modular, pre-assembled and pre-wired plants stack-together installation designed for quick setup for large quantity production.
  • Designs to 7000 bbl cement storage capacity across eight compartments
  • Horizontal Reversing Mixer operates on a friction tire drive design without the need for hydraulic systems
  • Low spillage charging and discharging design keeps a clean jobsite
  • High-speed, high-volume operations
  • Large-size permanent installations
  • Massive storage for high-production sites

Features

  • Horizontal Reversing Mixer: 12 cubic yard with VFD drives
  • Aggregate Storage: 150 cubic yard capacity across four compartments
  • Aggregate Batcher: 12-cubic-yard capacity with quick discharge design
  • Cement Storage: up to 3,500 bbl / four compartment main cement bin
  • Cement Batcher: 12 cubic-yard capacity LO-PRO or Gravity Cement Scale
  • Batch Belt Conveyor: 36 inch-wide, vulcanized splice conveyor
  • Water System: 3-inch water meter with Batched water reservoir piped directly to discharge
  • Electrical Power: UL Listed NEMA-rated power panel with lockable main disconnect Pre-wired starters for all electric motors

Options

  • Up to 350 cubic yards of Aggregate storage across eight compartments
  • 48″ or 54″ Batch Belt
  • Cement from four to eight compartments across up to two bins
  • Rear Cement Storage either1,840 bbl to 3,500 bbl rectangular cement bin or round silo
  • Custom-engineered site layouts
  • 12 and 15 cubic yard mixer sizes for larger batch size
  • Central or individual and mixer dust control systems for clean operations
  • Safety-focused stairway work platforms and ladder systems for ease of maintenance
  • Holding hopper for increased simultaneous production flow and loading
  • Custom material handling systems (e.g., conveyors, turnheads, radial stackers)
  • Wet/Dry Operation: Hydraulically operated flop gate for seamless switching between wet and dry batching

Real-World Results

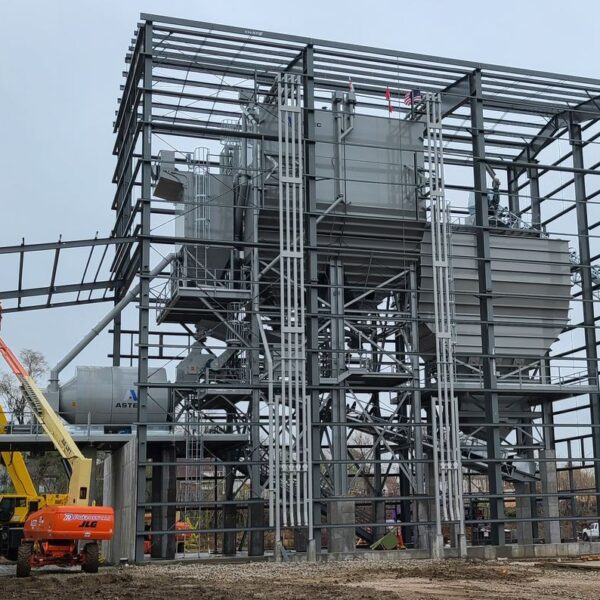

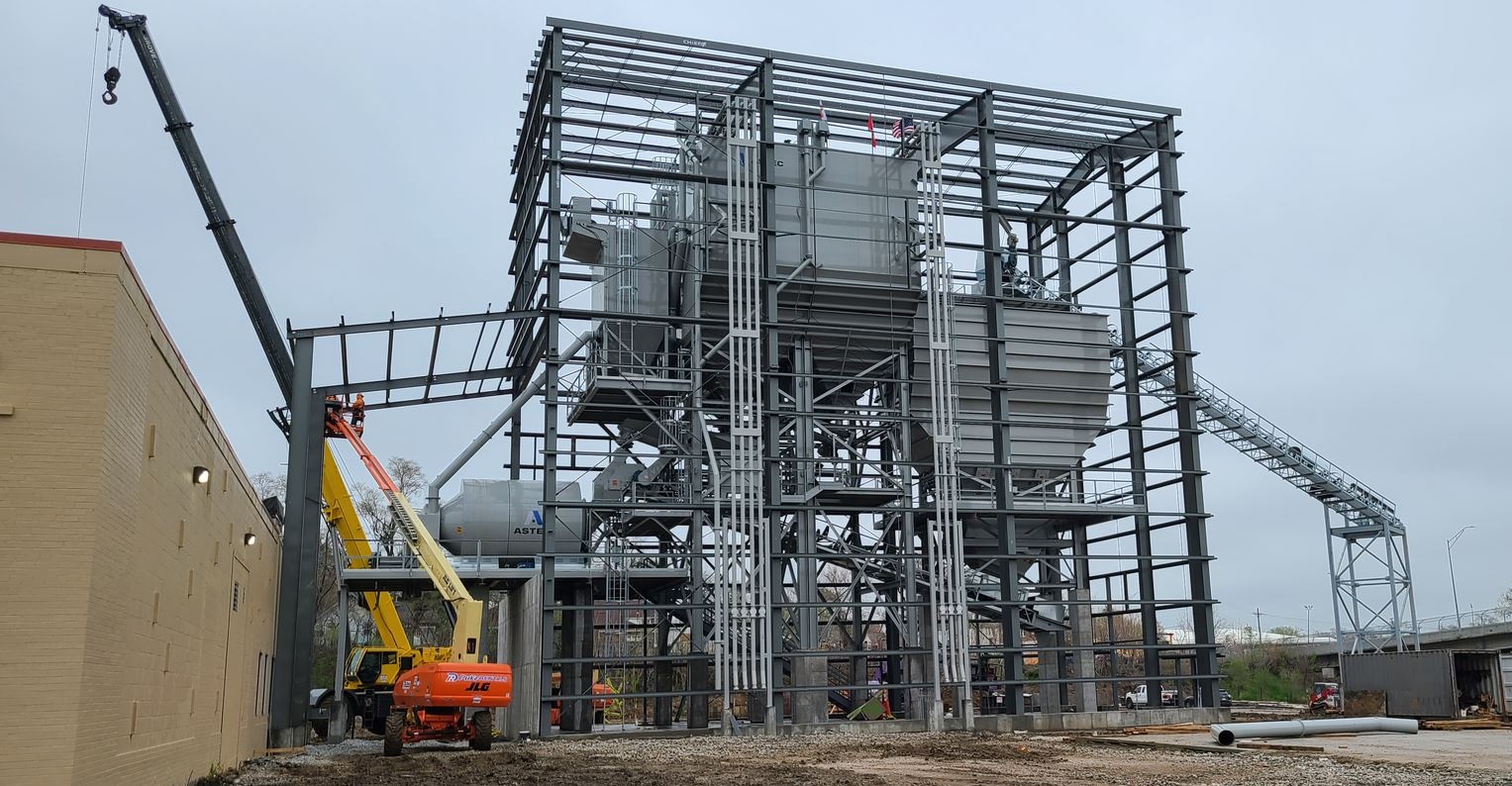

A large steel industrial structure under construction, with cranes and aerial lifts in use. The frame is partially complete, and a conveyor belt extends from the right side. Workers and construction equipment are visible on site.

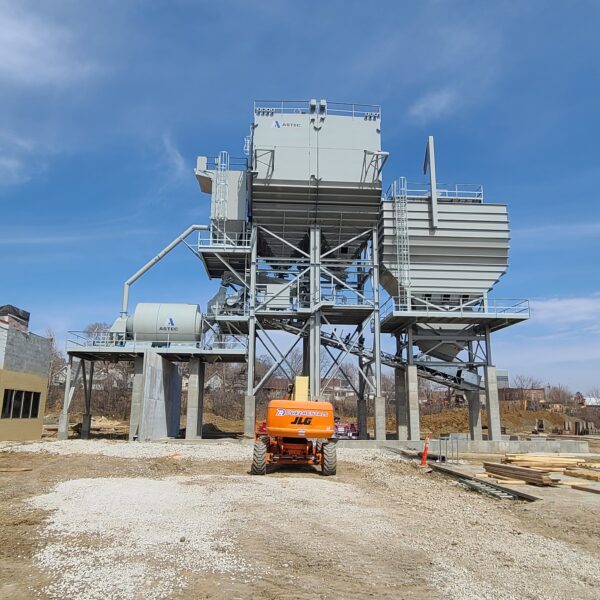

A large industrial structure with metal platforms and storage containers stands on concrete supports. A bright orange construction vehicle is parked in front, with a clear blue sky and trees in the background.

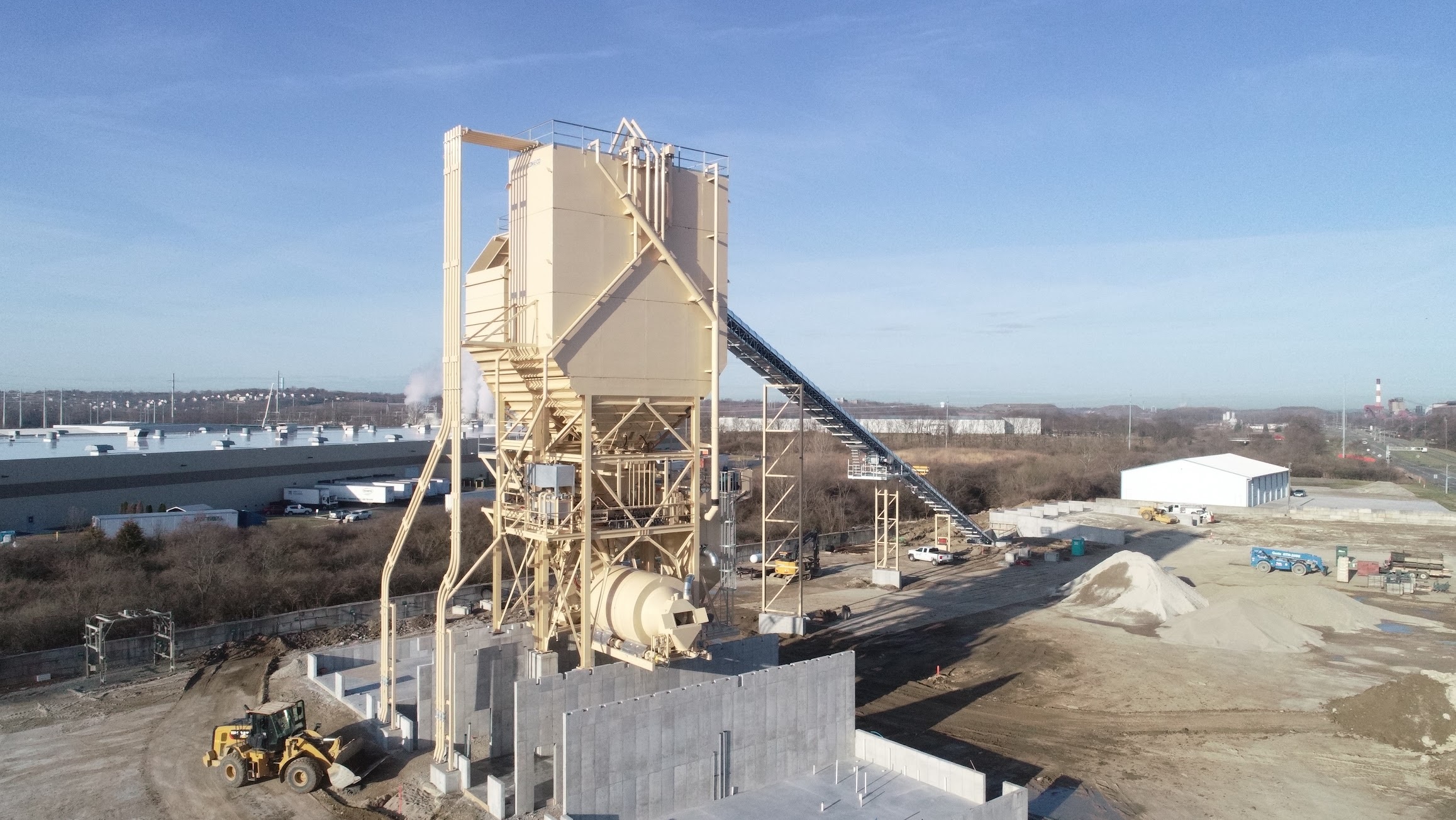

A large industrial cement plant with a tall beige silo, conveyor belt, and construction vehicles on a dirt lot, surrounded by piles of materials and nearby industrial buildings under a clear sky.

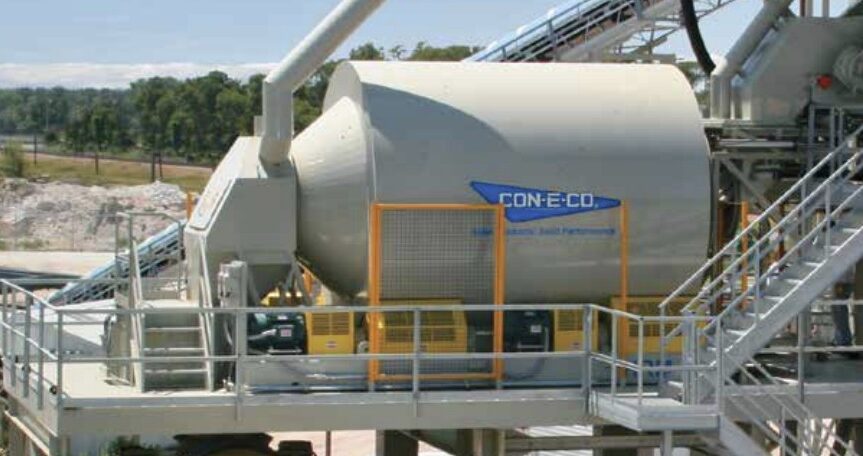

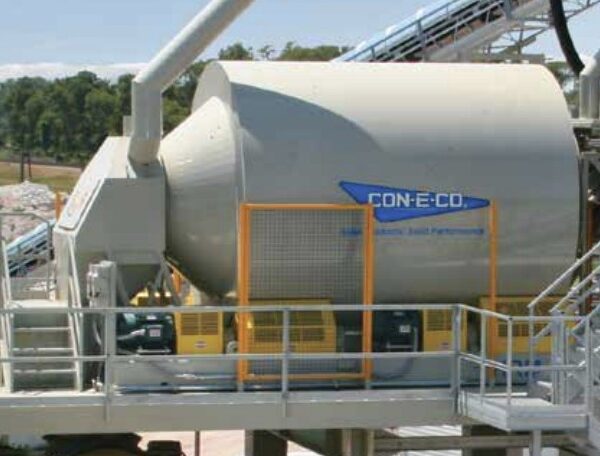

An industrial concrete mixer HRM Horizontal Reversing MIXER labeled CON-E-CO is positioned on a metal platform with stairs and railings, surrounded by machinery and a yellow tank at a concrete production facility.
A large concrete batching plant with tall silos, metal structures, and conveyor belts. A yellow cement mixer truck is parked nearby on a sunny day with trees and an open area in the background.
An industrial asphalt plant with large beige silos, storage tanks, and conveyor belts under a clear blue sky. The ground is covered in gravel and there are several buildings and equipment in the background.

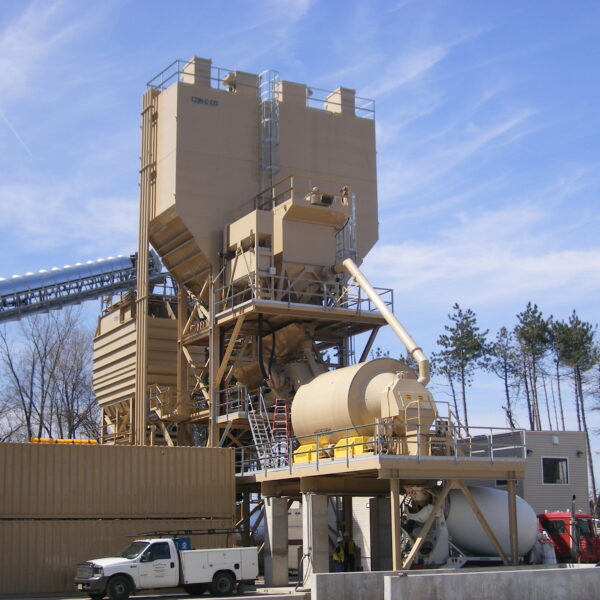

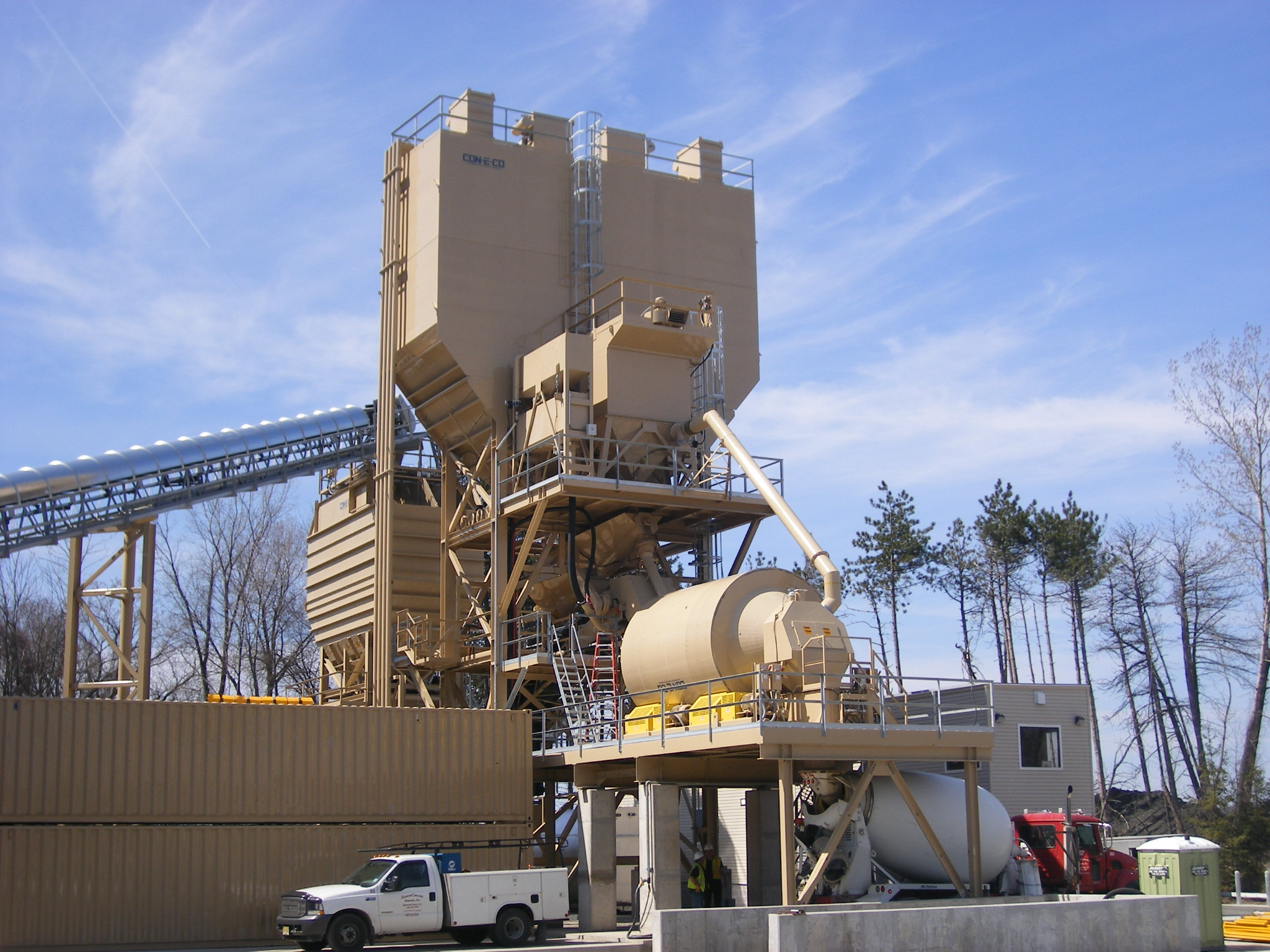

A large beige industrial asphalt mixing plant with silos, storage tanks, and elevated walkways, surrounded by vehicles and trees under a blue sky.
A large industrial asphalt mixing plant with multiple silos, staircases, and platforms stands on a concrete base outdoors under a cloudy sky. A small white van is parked nearby.
A large, gray concrete batching plant with multiple silos and metal structures under a clear blue sky, with trucks, barriers, and construction equipment in the foreground.
A construction site with an industrial structure, featuring a red steel framework around large white tanks and two orange boom lifts. A block building is partially completed beside the framework.
A large beige concrete batching plant with silos, conveyors, and stairs; a red cement truck and a portable toilet are in the foreground, with a few workers visible on the structure.
