Advanced Technical Services Inc.

RexCon® RexBatch Series

Large industrial machinery with multiple gray metal structures, tanks, pipes, and support beams, standing outdoors on a concrete base under a clear blue sky.

The RexCon® RexBatch 150 is a custom concrete batch plant built to match production goals, layout constraints, and operational needs. Whether you’re setting up a compact urban site or a high-output construction project, RexBatch Series offers the flexibility, scalability, and rugged reliability that producers demand for permanent plant sites.

Download Brochure
  • Engineered for custom configurability
  • High-capacity systems with multiple discharge lanes and gravity-fed rectangular L-bins
  • Modular, pre-assembled plants with stack-together installation designed for quick setup for large quantity production.
  • High-speed, high-volume operations
  • Mid-size to large-size permanent installations

Aggregate Storage

  • Capacities from 135 to 425 tons
  • Configurable with 4 to 8 compartments
  • Turnhead with operator controls
  • Heavy-duty bolted clamshell gates with air cylinders
  • AR400 or polyurethane liners available

Aggregate Batcher

  • 12-cubic-yard capacity with quick discharge design
  • Equipped with load cells for precise batching
  • Heavy-duty clamshell gates powered by rebuildable air cylinders

Cement Storage

  • Bin capacity from 1,000 to 2,900 bbl
  • 2 to 6 compartments for mix and storage flexibility
  • 5-inch fill pipes with butterfly gates and aeration pads

Cement Batcher

  • 12 cubic-yard capacity
  • Butterfly gates with air cylinders and Low pressure diffuser pads for smooth flow

Batch Belt Conveyor

  • 48-inch-wide, vulcanized splice conveyor
  • Driven at 600 feet per minute (FPM) for high production
  • Includes scraper for clean operation

Water System

  • 3-inch water meter
  • Batched water reservoir piped directly to discharge

Wet/Dry Operation

  • Hydraulically operated flop gate for seamless switching between wet and dry batching

Electrical Power

  • NEMA-rated power panel with lockable main disconnect
  • Pre-wired starters for all electric motors

Options

  • Custom-engineered site layouts
  • 12S and 12L mixer sizes for larger batch sizes
  • Single or dual cement batchers for batching flexibility
  • Central or individual dust control systems for clean operations
  • Safety-focused stairway work platforms and ladder systems for ease of maintenance
  • High/low material level sensors
  • Holding hopper for increased production flow
  • Polyurethane or AR400 wear liners
  • Custom material handling systems (e.g., conveyors, turnheads, radial stackers)

Real-World Results

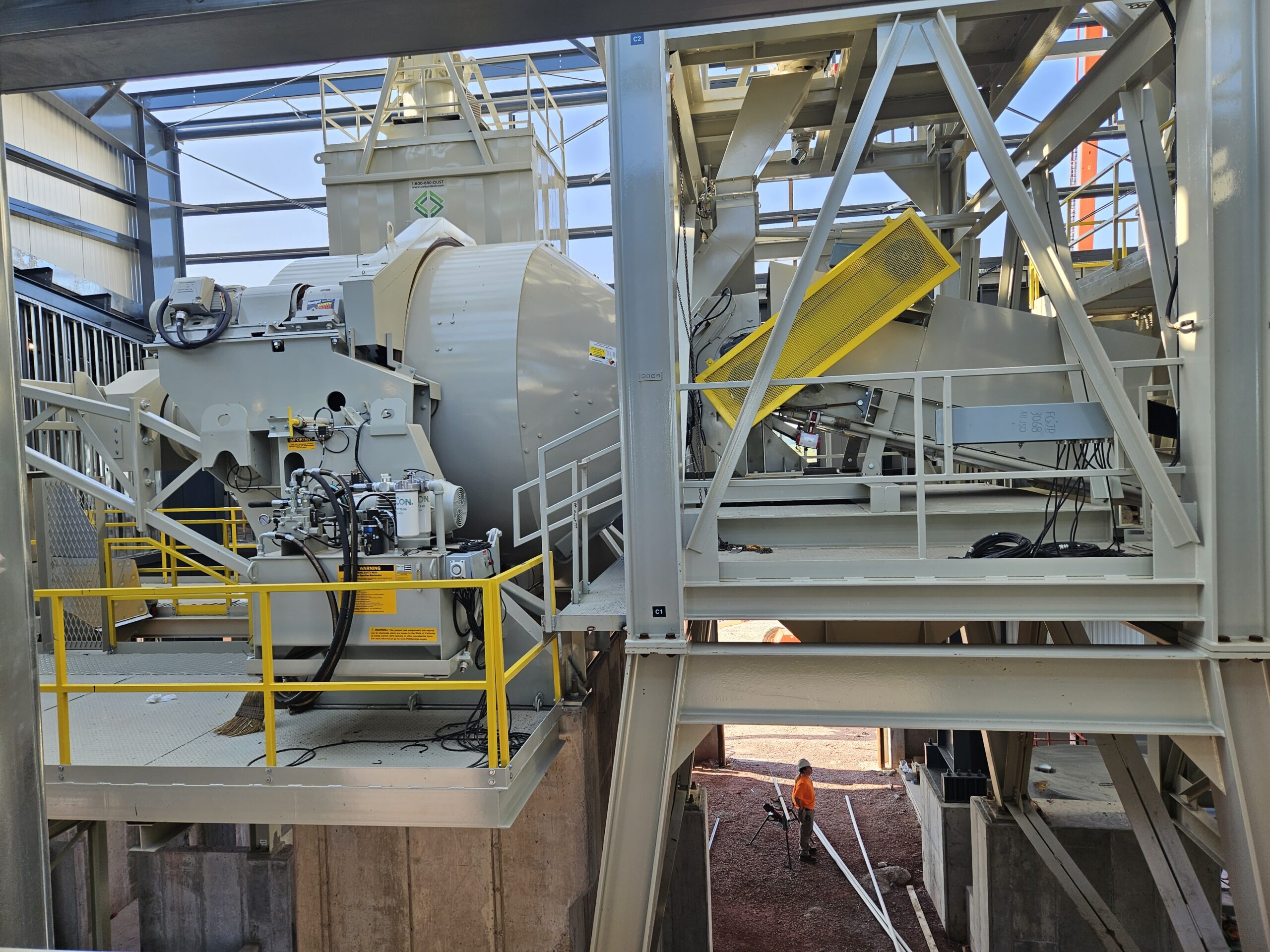

A large industrial central mix concrete plant with metal steel building framework and yellow railings inside a factory. A worker in an orange vest and hard hat stands below on a gravel area, emphasizing the scale of the equipment.

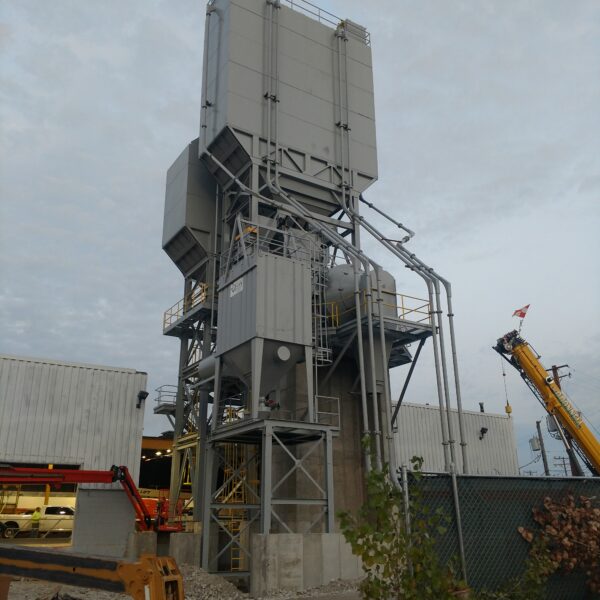

A tall, gray industrial structure with pipes and platforms stands outdoors near white buildings, construction equipment, and a green fence under a cloudy sky.

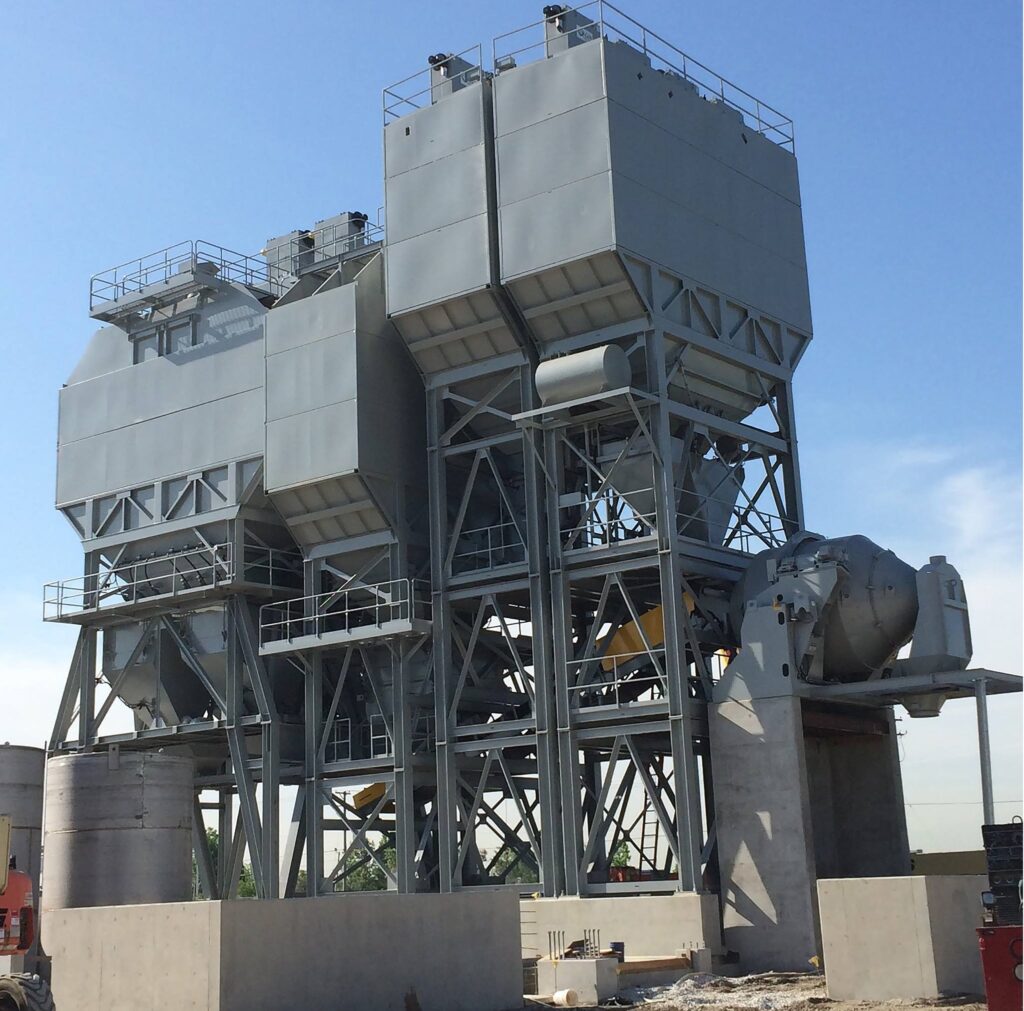

Large industrial machinery with multiple gray metal structures, tanks, pipes, and support beams, standing outdoors on a concrete base under a clear blue sky.

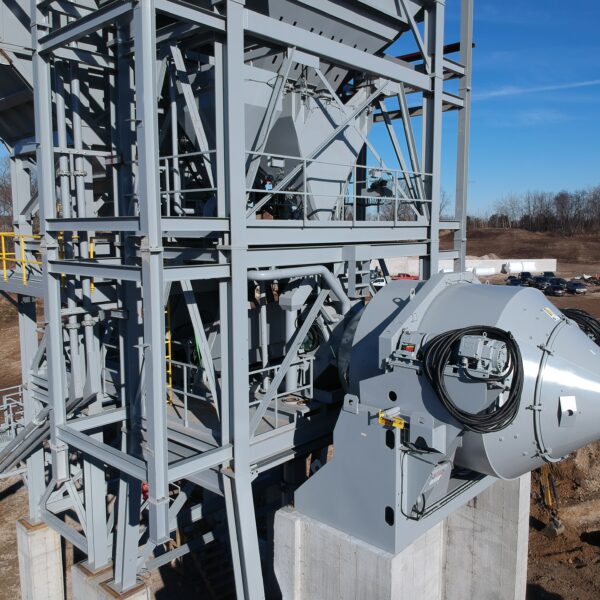

A large industrial machine with gray metal framework and a cylindrical component is mounted on concrete supports at a construction site, with bare trees and vehicles in the background under a clear blue sky.

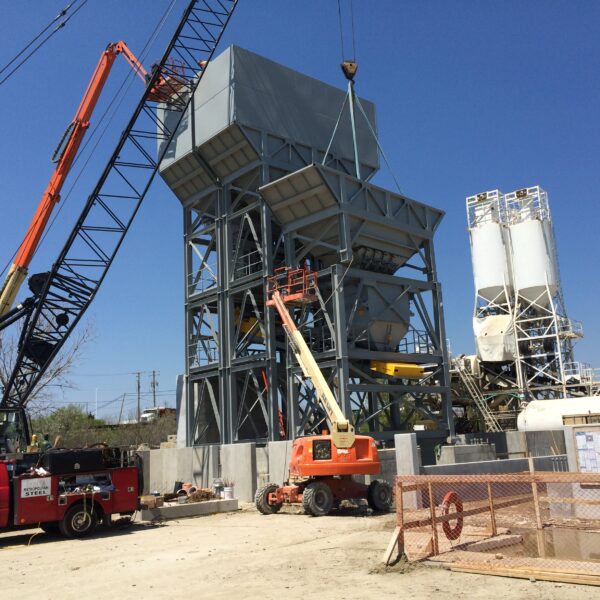

A construction site with cranes, trucks, and heavy machinery assembling a large industrial structure under a clear blue sky. Workers and building materials are visible around the site.

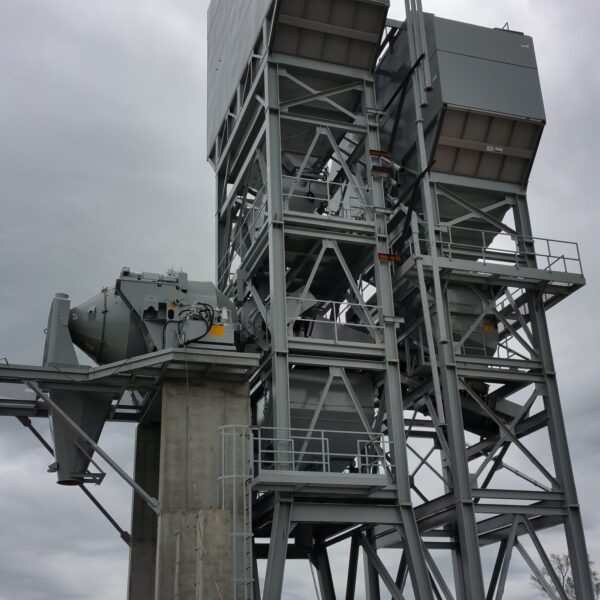

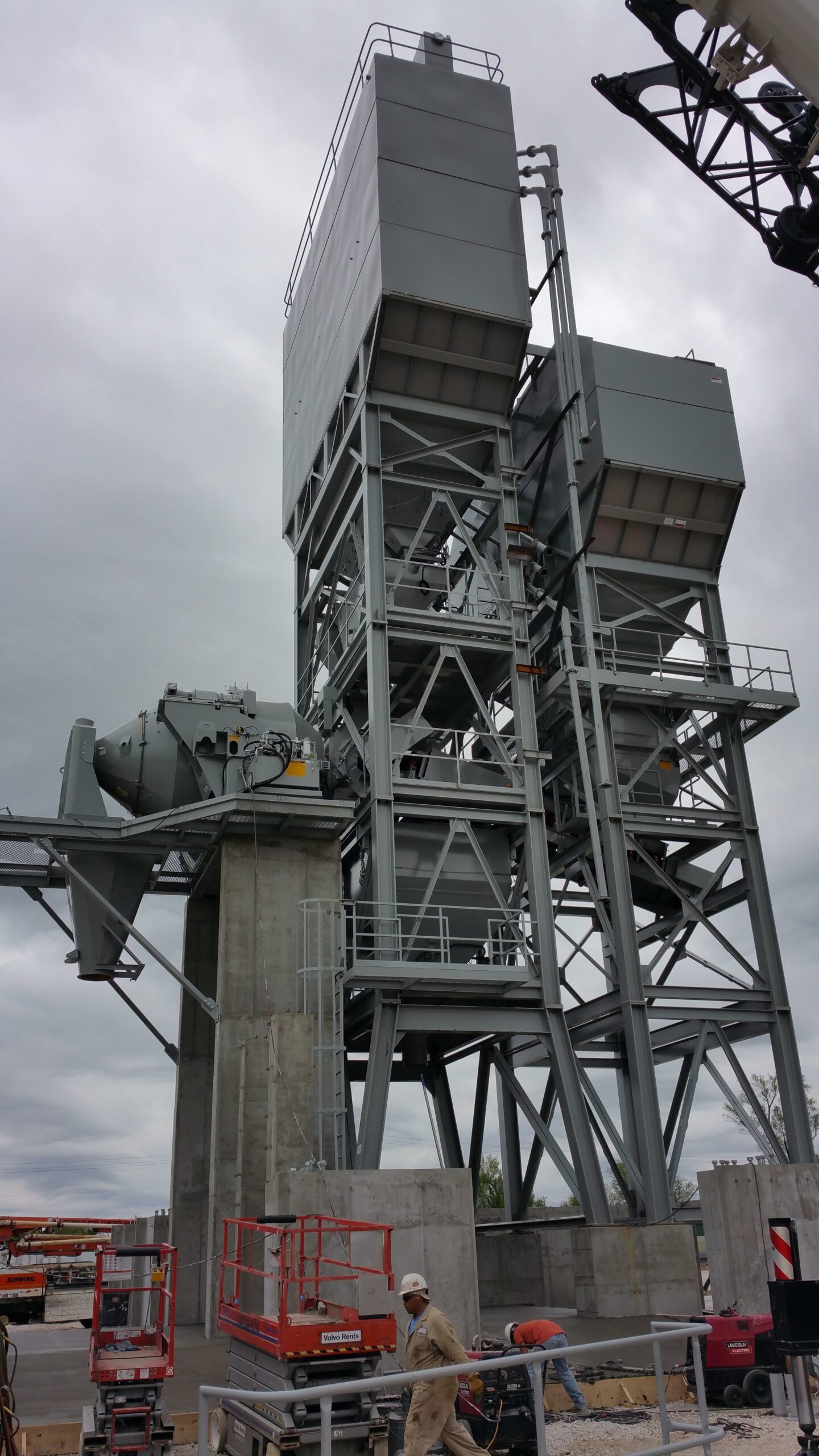

A tall industrial structure made of metal beams and large containers stands on a concrete base at a construction site; workers in hard hats and lifts are visible in the foreground under a cloudy sky.
A large industrial structure with tall grey silos and a long conveyor belt extending upward, set against a bright blue sky with scattered clouds. Trees and buildings are visible in the distance.

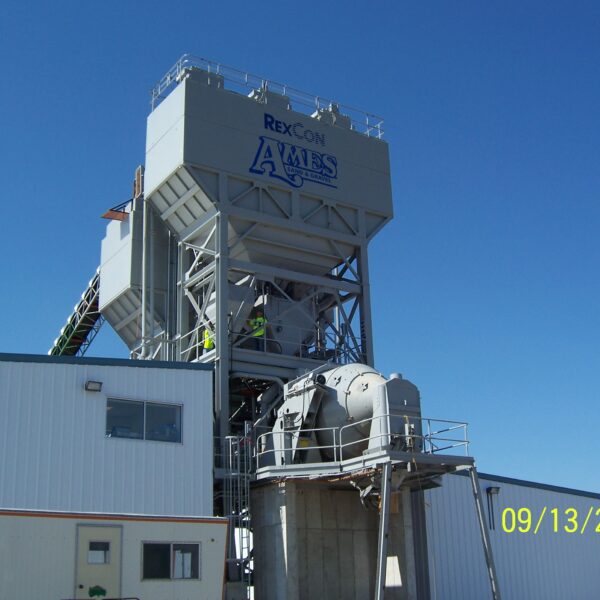

A large industrial concrete batching plant labeled REXCON AMES stands beside a white building under a clear blue sky. The date stamp on the photo reads 09/13/2006.
