RexCon® Model S Batch Plant

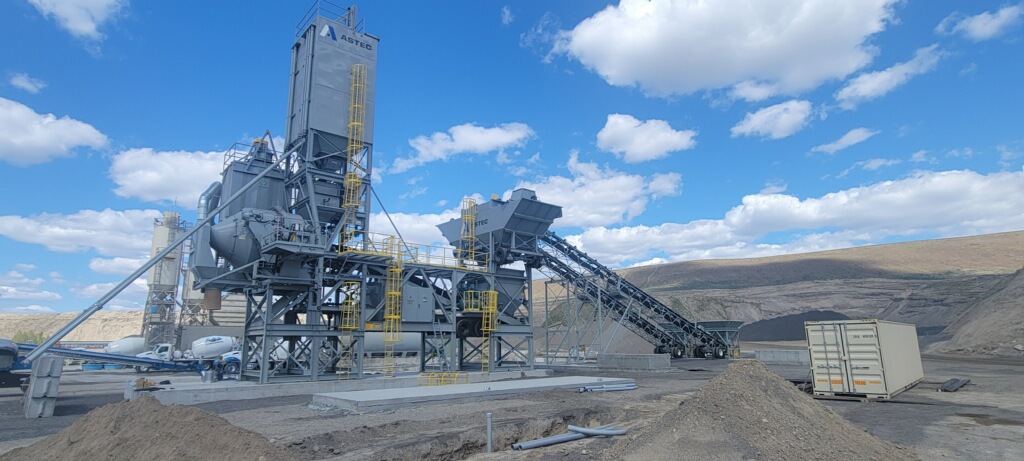

A large, industrial concrete batching plant with metal silos and conveyors is set up outdoors on a gravel lot, surrounded by equipment, shipping containers, a red truck, and bordered by leafless trees and open fields.

The RexCon® Model S is the gold standard of a reliable American made portable paving batch plants—combining mobility, production output, and superior mix quality in a rugged, jobsite-ready package. Designed for quick setup and large-volume output, the Model S delivers needed flexibility without compromising on performance.

Because it uses modular, pin-connected sections, this plant is rapidly installed and fully operational in hours. Whether you’re paving highways or supplying large infrastructure projects, the Model S is ready to go—and grow—with your production demands.

Download Brochure
  • Up to 35 loads per hour with the RexCon® Tilt Mixer
  • Up to 55 loads per hour when combined with the RexCon® Horizontal Mixer
  • Modular components pin-connect for quick installation
  • Designed to deliver consistent mix quality and uniformity at high production rates
  • Highway and airport paving projects
  • On-site batch plant operations
  • Regional infrastructure projects
  • High-volume portable concrete production
  • Portable Paving

Aggregate Bin Trailer

  • 135-ton reversible bin up to 205 ton
  • Three equal compartments with six gates
  • Single-axle trailer with radial tires and adjustable jack stand

Cement Trailer

  • 2,400 cubic foot (600 Bbl) dual-compartment cement bin (1/3—2/3 split) expandable to 3,000 cubic foot 750 bbl
  • 12 cubic yard cement or dual cement batchers on compression load cells
  • Includes telescoping calibration arms, mixer charger hood, batched water reservoir and optional weighed water
  • Five to eight 5-inch air-fill pipes, access hatches, safety handrails, toe boards, and ladder with cage
  • Internal ducting for quick clamp-together low profile dust collector connection
  • Dual-axle trailer with radial tires

Base Trailer

  • 12-cubic-yard aggregate batcher on four load cells
  • 48-inch-wide, 3-ply belt with 50-horsepower vulcanized batch transfer belt
  • Includes calibration arms for test weighing and compression load cells
  • 25-horsepower air compressor and 15-horsepower water pump system
  • 5,000-gallon water tank with auto-fill valve
  • Mounted on dual-axle trailer with radial tires and jack stand

Tilt Mixer Trailer

  • 12 cubic-yard tilt mixer
  • Twin 100-horsepower TEFC reducers and drives
  • 30-horsepower hydraulic pack
  • Emergency tilt function and automatic greasing systems
  • Includes dust platform and brackets for dust collector mounting on mixer deck
  • Tri-axle trailer with radial tires and adjustable jack stand

Electrical System

  • 460-volt, 3-phase, 60-Hz NEMA enclosure with main disconnect and starters
  • Plug-and-cord wiring
  • UL-approved power panel

Real-World Results

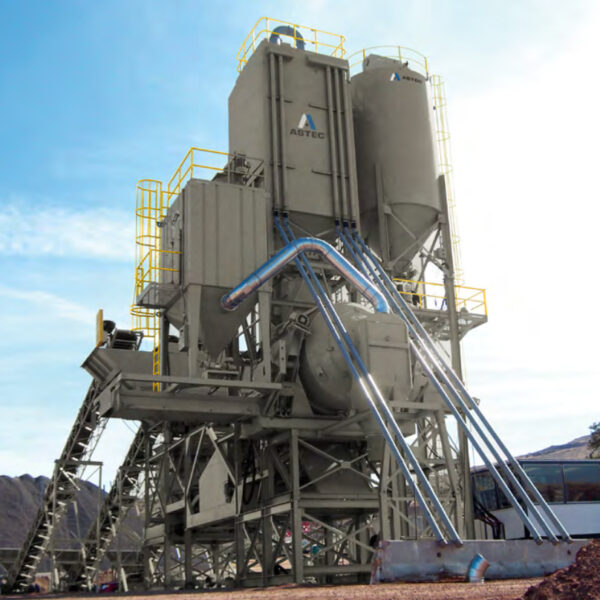

A large industrial asphalt mixing plant with tall silos, metal structures, and several pipes, standing outdoors against a clear sky with mountains in the background.

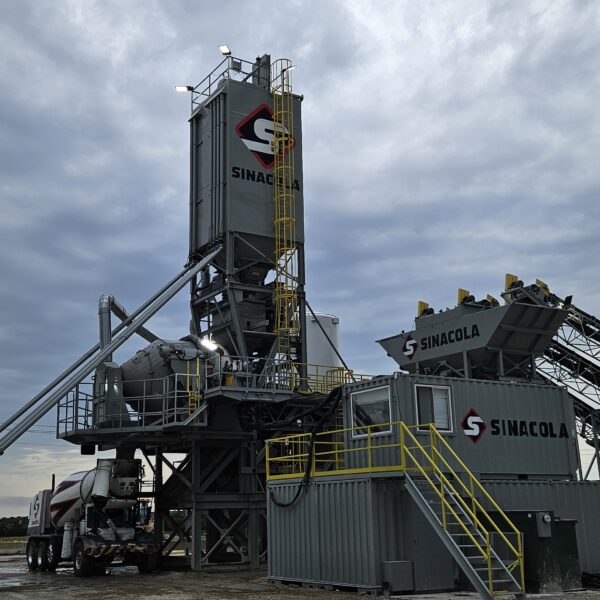

A large concrete batching plant with “Sinacola” logos on tall silos and equipment, surrounded by metal stairs and railings, stands under a cloudy sky on a gravel lot. A cement mixer truck is parked nearby.
A large asphalt mixing plant with various conveyor belts, silos, and metal structures stands on a dusty construction site under a partly cloudy blue sky, with hills visible in the background.

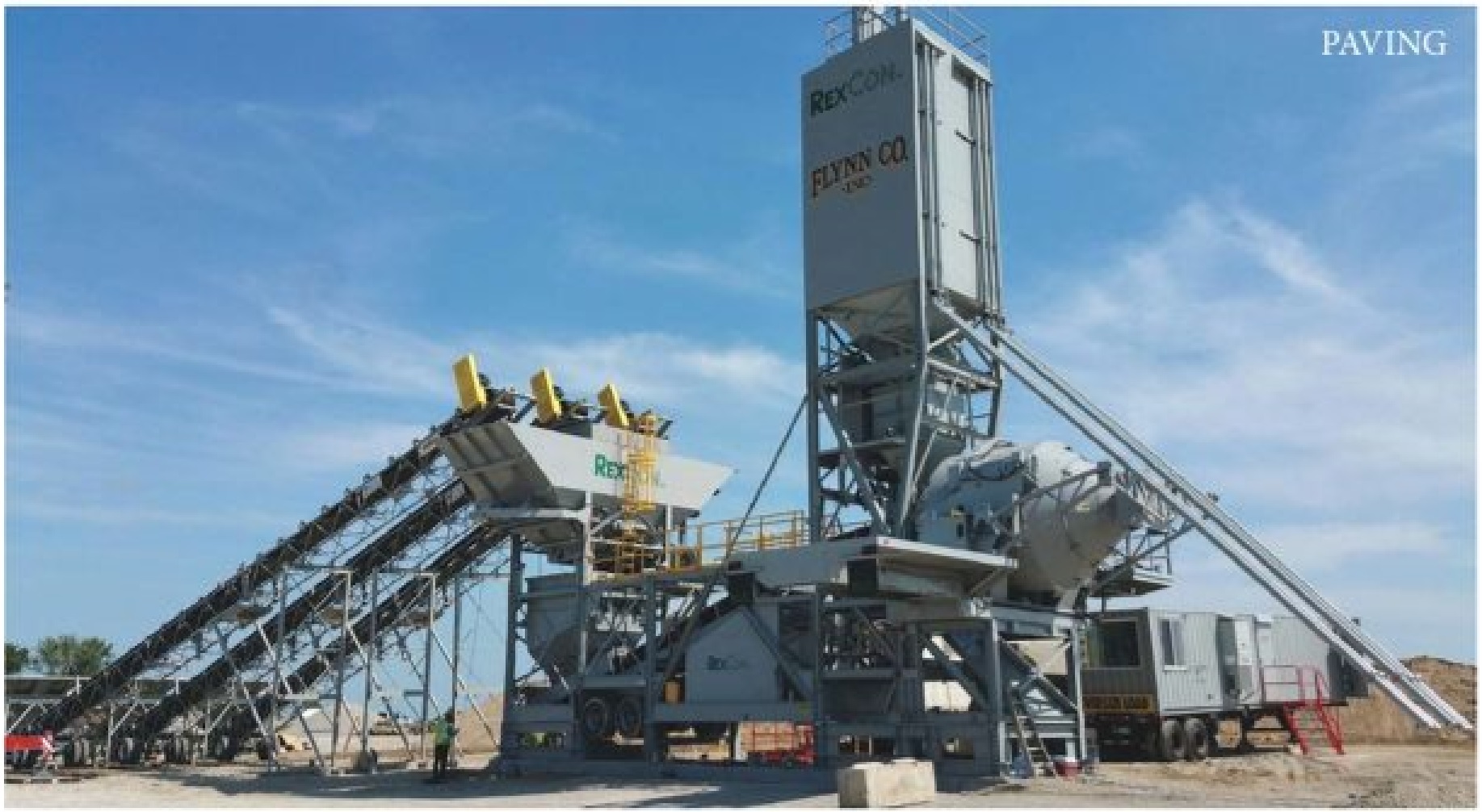

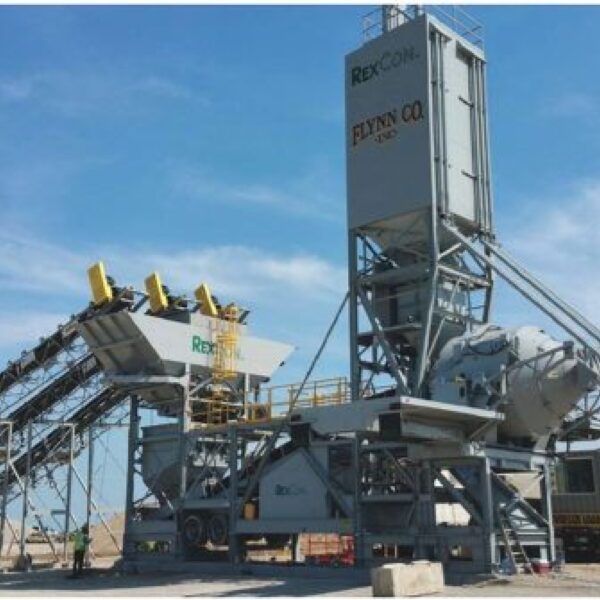

Large asphalt paving plant with conveyors, silos, and machinery stationed outdoors on a construction site under a clear sky. Equipment is labeled REXCON and FLYNN CO.

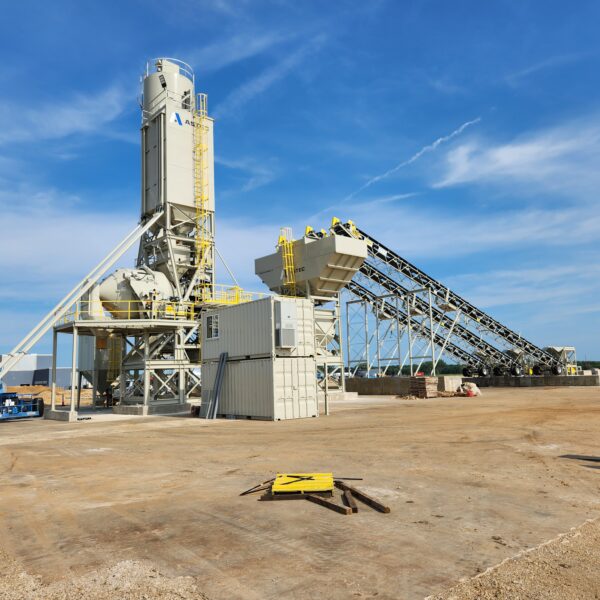

A concrete batching plant with silos, conveyor belts, and storage containers stands on a large, clear construction site under a blue sky with some clouds.
A large, industrial concrete batching plant with yellow safety railings and machinery, situated outdoors near a highway and surrounded by construction vehicles and equipment.

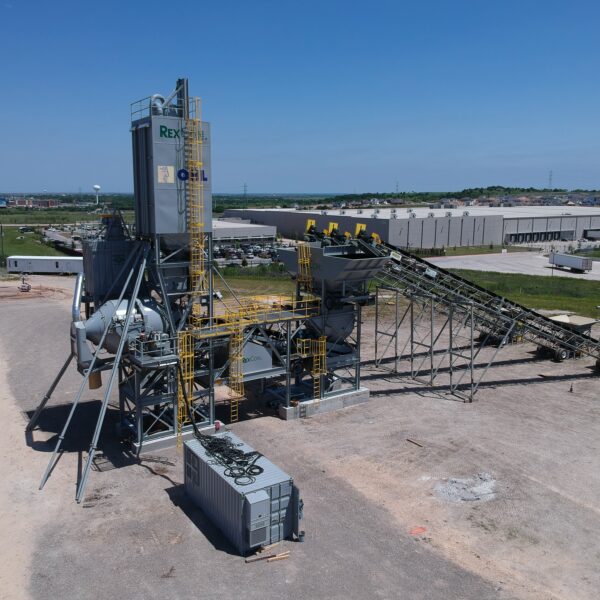

A large industrial asphalt plant with conveyor belts and storage units stands on a construction site, surrounded by dirt, roads, and nearby warehouses under a clear blue sky.

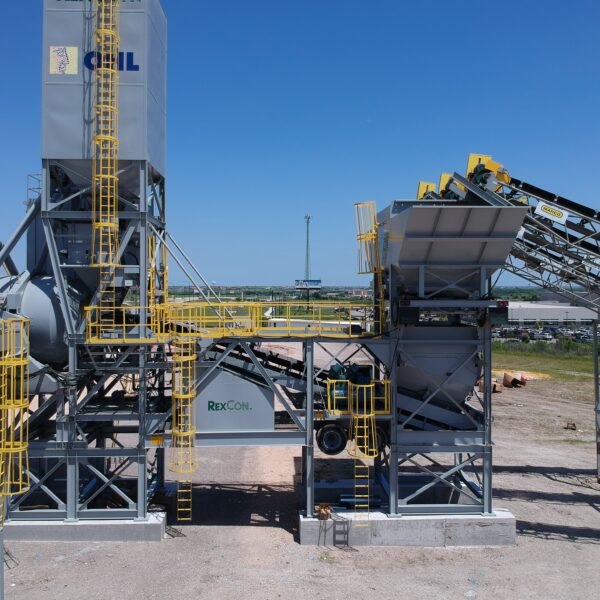

A large industrial concrete batching plant with silos, conveyor belts, and metal structures stands outdoors under a clear blue sky on a gravel lot. The equipment is painted gray and yellow.

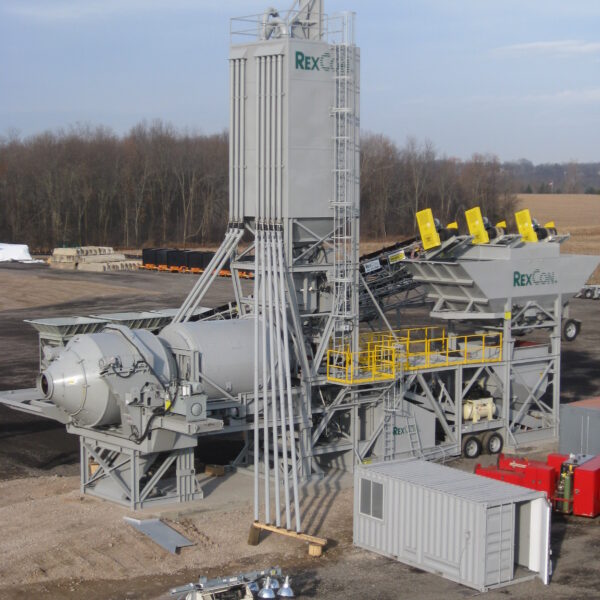

A large gray concrete batching plant with multiple silos, conveyors, and machinery stands on a construction site with dirt ground and trees in the background. A white utility vehicle and storage containers are nearby.

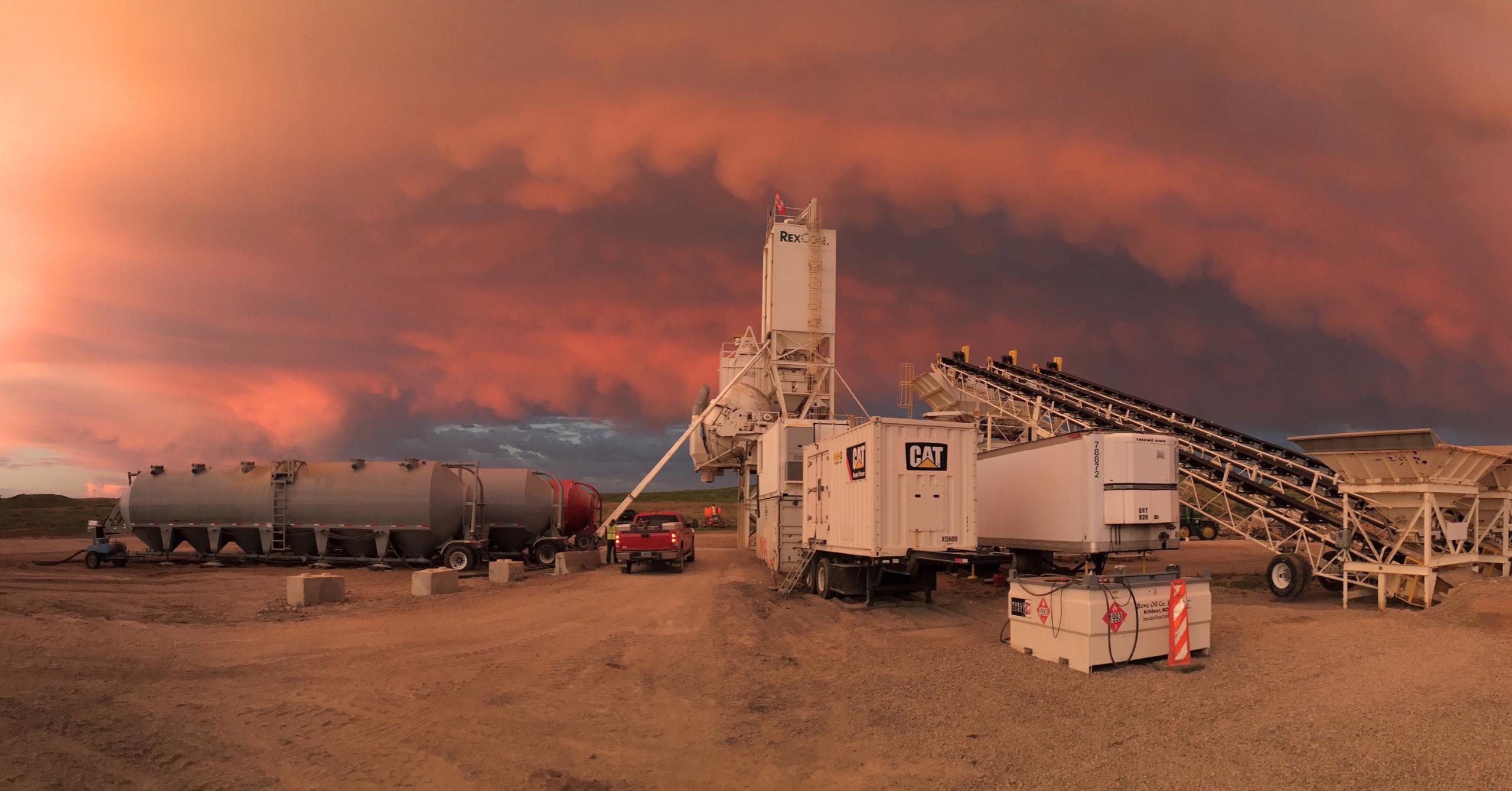

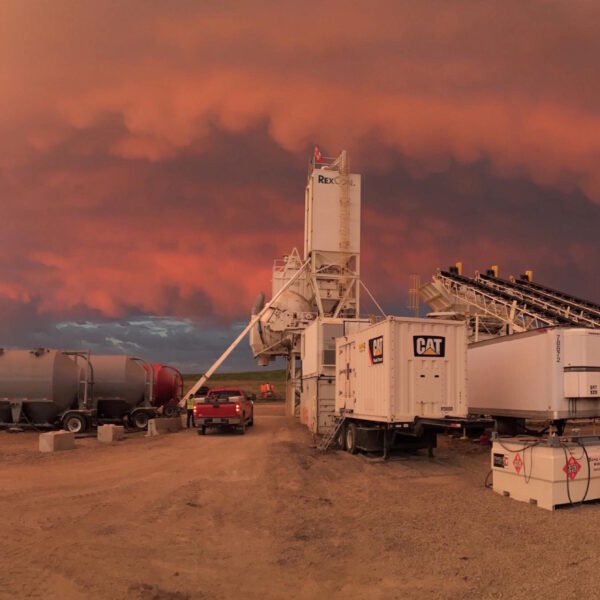

A construction site at sunset with large machinery, trailers, and a conveyor belt under a dramatic sky filled with dark, swirling orange and purple clouds.

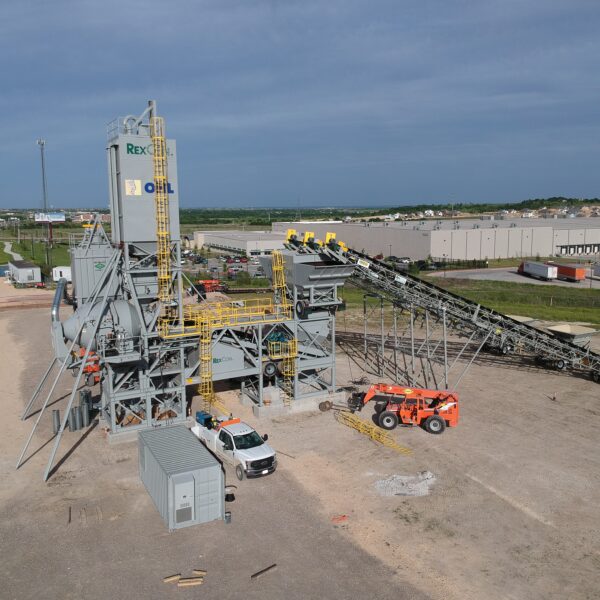

A large industrial concrete plant with conveyor belts and machinery stands on a dirt lot. Nearby are white and orange vehicles, with a warehouse and trucks visible in the background under a partly cloudy sky.

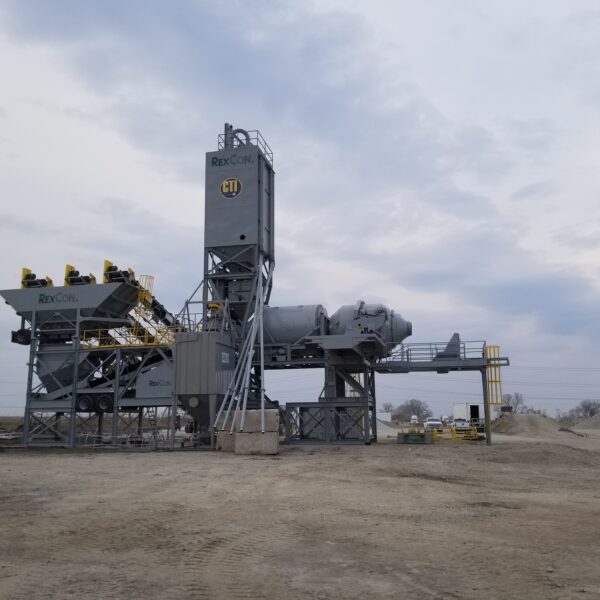

A large industrial concrete batching plant with multiple conveyors and silos stands on a dirt lot under a cloudy sky. Machinery parts are labeled “RexCon.” There are piles of gravel and sparse trees in the background.

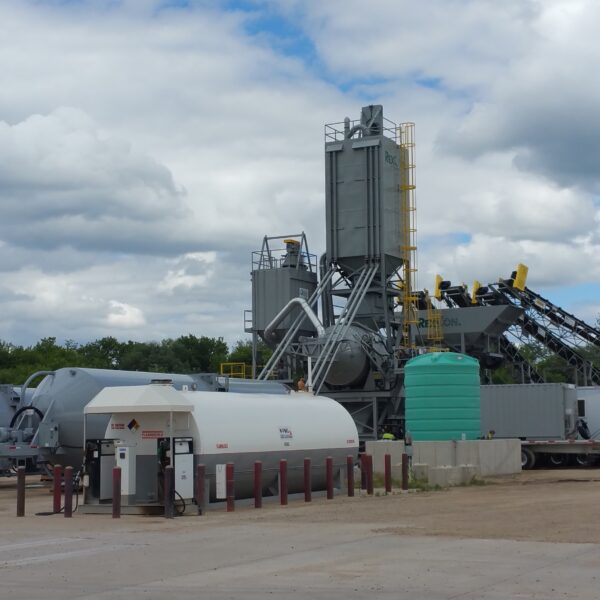

An asphalt mixing plant with industrial equipment, storage tanks, and a fuel station on a cloudy day, set on a gravel lot with trees in the background.
