RexCon® Mobile 12 SE

Large industrial asphalt plant machinery labeled “Astec” sits on a dirt lot at sunset, with construction equipment and a leafless tree in the background under a clear blue sky.

The RexCon® Mobile 12 SE sets the industry standard for portable concrete production. Engineered for strength, flexibility, and fast setup, this low-profile, self-erecting batch plant is built for producers who demand mobility and high-volume output.

Whether you’re working on paving projects or portable ready-mix production, the Mobile 12 SE delivers unmatched quality, speed, and reliability in either central mix or transit mix configurations.

Download Brochure
  • Wet or dry mobile foundation pad kits can ship with the plant
  • Self-erecting design with no crane required for base plant setup
  • Hydraulic lift system for fast deployment in minutes
  • High production capacity in a compact, transport-friendly package
  • Customizable configurations to meet exact production needs
  • Available in central mix and transit mix models
  • Central or transit mix needs
  • Paving projects
  • Portable ready-mix production
  • Remote or temporary job sites

Mobile 12 SE CM—Central Mix Model

  • 12 cubic yard tilt mixer with integrated self-erecting hydraulic system
  • Hydraulic self-erect system with remote pendant control and 13-horsepower power pack
  • Fold-up 66 ton aggregate bin (four compartments) expandable to 200 tons with eight gates
  • 48-inch-wide batch belt with 50-horsepower drive (680 feet per minute)
  • Two 150-bbl cement compartments with high-speed screws
  • 25-horsepower high-pressure air system with 120-gallon tank
  • 15-horsepower water system with two 3-inch mag meters
  • Full transportation gear: king pin, triple axles, spring suspension, radial tires, brakes, and lights
  • NEMA-rated dust-tight power panel with plug-and-play wiring

Options

  • 600-bbl self-erect auxiliary cement bin
  • Stackable conveyors or self-erect material handling systems
  • Mobile central dust collection system
  • 20- or 40-foot office control container
  • Central grease and remote grease systems standard for automated maintenance
  • Ready Mix Riser and self-supporting dumpcone or maintenance platform options

Mobile 12 SE TM—Transit Mix Model

  • Self-erecting hydraulic system ready for central mix expansion
  • Fold-down 66-ton, four-compartment aggregate bin
  • Integrated cement section: Two 150-bbl bins with direct-drive 50-horsepower screws
  • 25-horsepower, high-pressure and 5-horsepower low-pressure air systems
  • No concrete foundation required for base plant setup; Mobile pads transport with the plant for fast plant erection that leaves a small trace
  • 14-foot clearance height for truck loading
  • Plant configured for ease of future central mix conversion

Options

  • Up to 200-ton aggregate bin extensions
  • Radial stackers or portable material handling options
  • Dust collectors for truck loading, batcher, and silos

Real-World Results

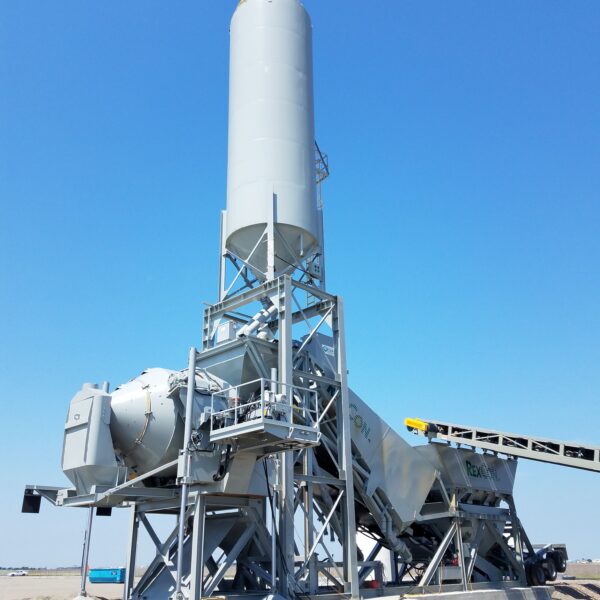

A large concrete batching plant with a tall cylindrical silo and conveyor system stands on a sandy construction site under a clear blue sky.
A large industrial concrete batching plant with silos, conveyor belts, and ladders stands on a dirt lot under a bright blue sky with scattered clouds. The brand RexCon is visible on the structure.

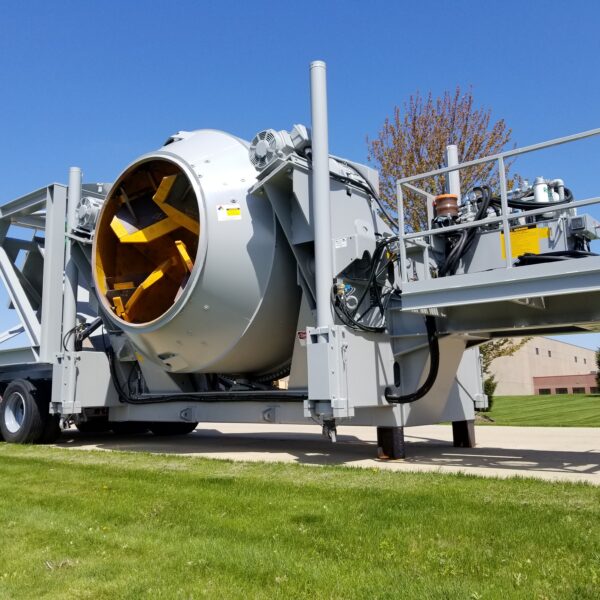

A large, industrial rotary drum machine mounted on a multi-axle trailer sits on grass near a sidewalk under a clear blue sky, with buildings and trees in the background.

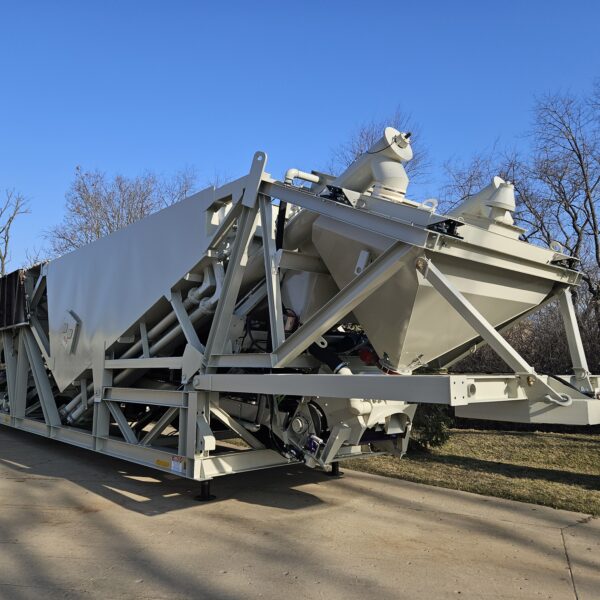

Large industrial concrete batching plant with multiple aggregate compartments and and large batch belt parked on a paved surface with trees and blue sky in the background.

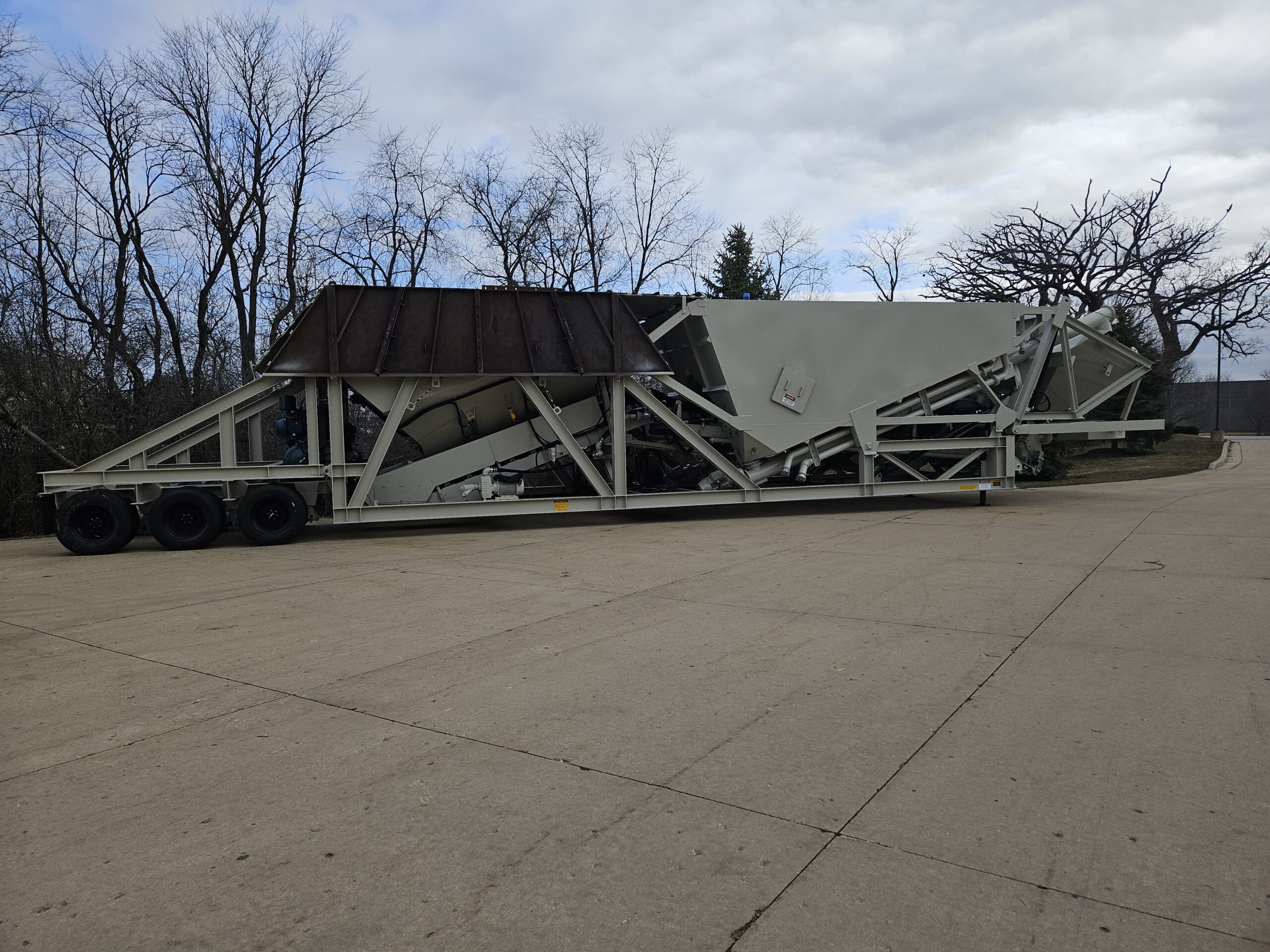

Large industrial machinery on a trailer sits on a concrete road, with leafless trees and cloudy sky in the background. The equipment appears to be for construction or material processing.
A large industrial concrete mixer with the label REXCON stands on a concrete platform, surrounded by trees and a small building, under a partly cloudy blue sky.
Large industrial asphalt mixing machine with metal framework and conveyor belts, stationed on a muddy construction site under a cloudy sky. Two workers in yellow vests stand nearby for scale.
