RexCon® LoGo 12

A red ready mix truck is parked in front of two tall industrial silos and a gray building at sunset. The sky is partly cloudy with a blue hue. The silos have the word ASTEC printed on one of them.

The LoGo 12 produces up to 200 cubic yards per hour—making it ideal for permanent installations or high-volume job sites. The solid base trailer and robust structural design ensure stability and longevity, while optional upgrades add flexibility to match specific production needs.

Download Brochure
  • High-volume production capabilities
  • Rugged and transportable
  • Easily Relocatable
  • Reliable performance
  • Pre-plumbed and pre-wired reduces installation times
  • High-volume commercial or industrial job sites
  • Permanent installations
  • Precast facilities
  • Infrastructure products
  • Mobile ready-mix applications
  • Temporary or remote job sites

Features

  • Aggregate Bins: 66-ton / 45-cubic-yard (CPMB), four compartments (in-line or cross)
  • Aggregate Batcher: 12 cubic yard with 50,000-pound load cells
  • Gravity Cement Storage: 4,200 cubic feet/1,050 bbl. split compartment
  • Cement Batcher: 12 cubic yard with 10,000-pound load cells
  • Batch Belt: 30- or 36-inches wide, 350 feet per minute (FPM) with 20-horsepower drive
  • Water System: 3-inch mag meter with electric cut-off valve
  • Air System: 15-horsepower, two-stage compressor with 120-gallon tank plus 4.6-horsepower aeration blower
  • Power Panel: 460 volt system with auto-reset starters and 110-volt transformer
  • Transport: Dual axle, eight-wheel, kingpin-equipped trailer with brakes and lights

Options

  • Aggregate Bins: Up to 200-ton capacity with six compartments
  • Cement Storage: Auxiliary bins from 550 to 1,200 bbl with screw conveyor and platform
  • Batch Belt: 36-inch-wide upgrade with 25-horsepower drive
  • Turnhead or Flopgate systems with Fixed or Radial Stacking conveyor configurations
  • AR steel or polyurethane liners for aggregate bin and batcher
  • Central Dust Collection or individual batcher/mixer collectors
  • Future conversion-ready for central mix batching
  • Weighed Water

Real-World Results

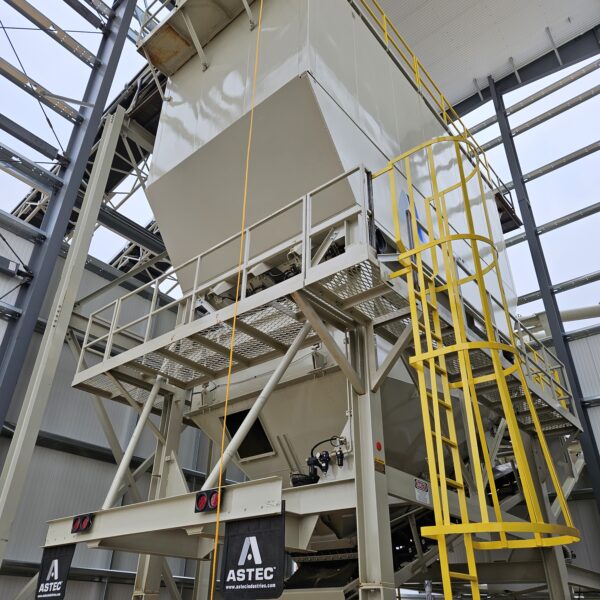

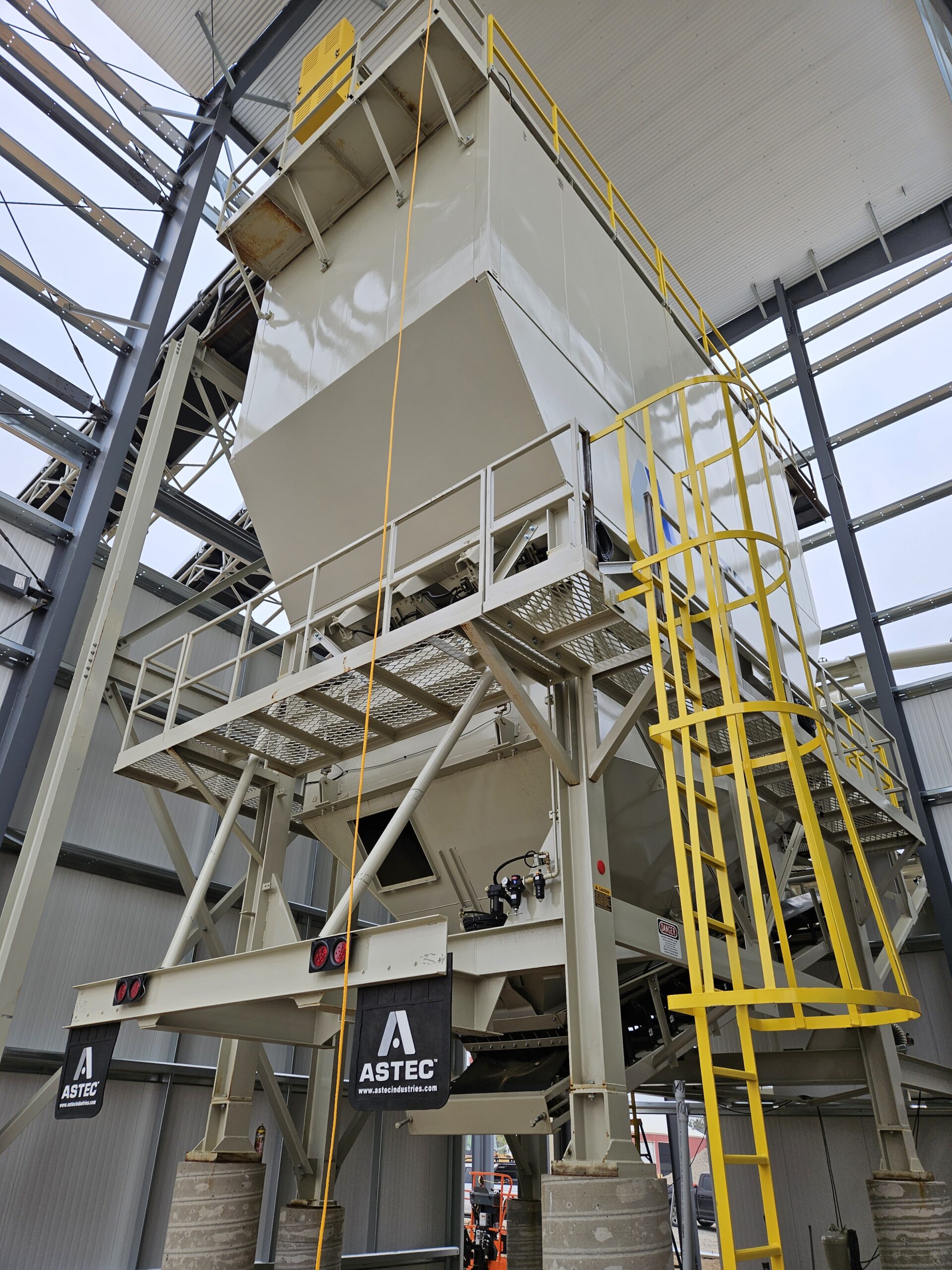

Large industrial ASTEC equipment stands inside a factory, featuring a white metal hopper, yellow ladders and railings, with steel beams and a high ceiling in the background.

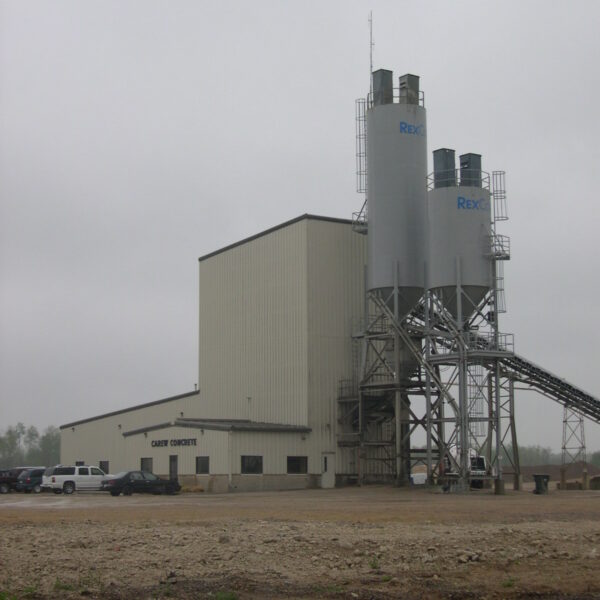

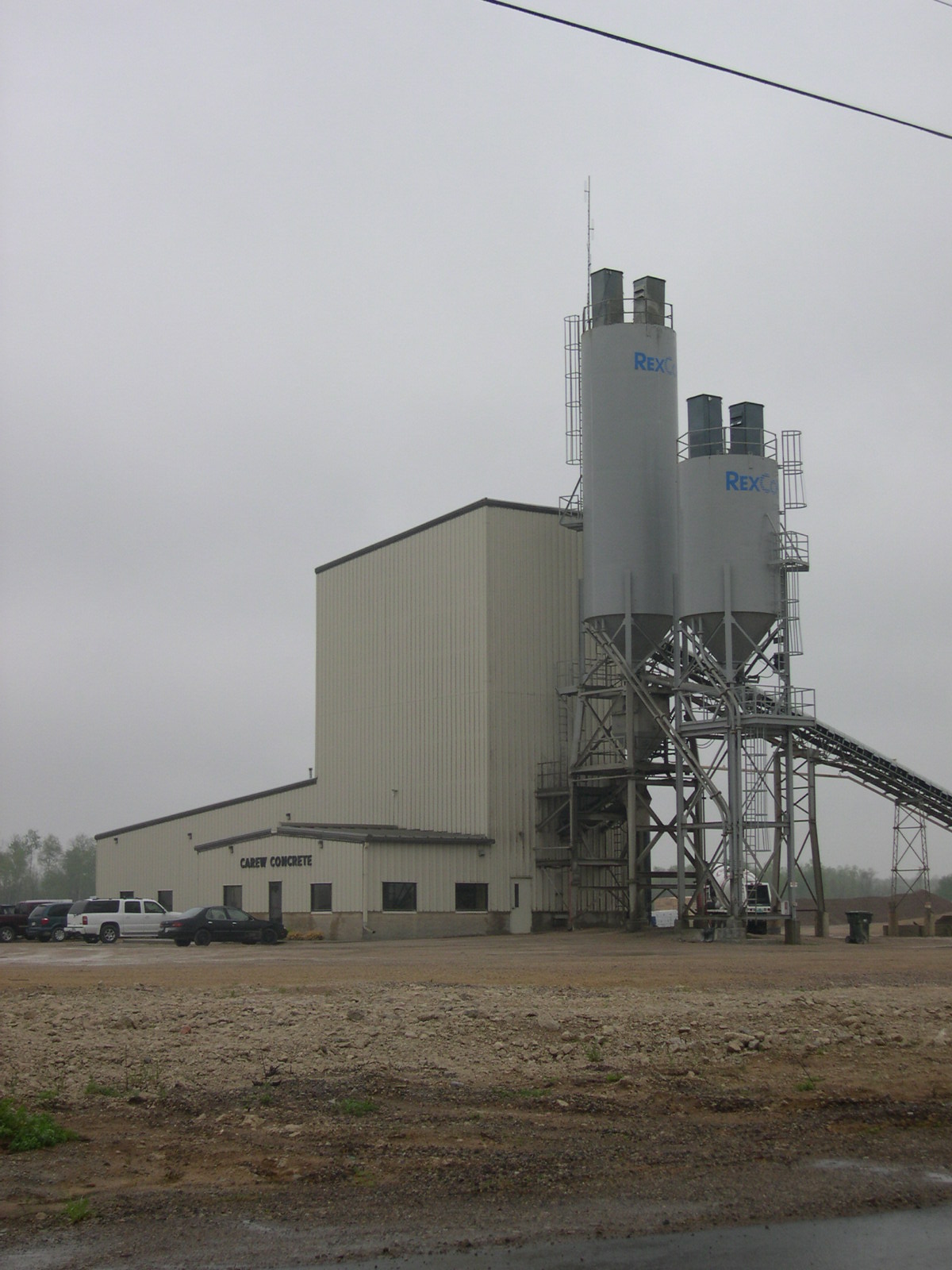

A concrete plant with tall silos labeled RexCon and a beige industrial building; several cars are parked outside on a cloudy, overcast day.

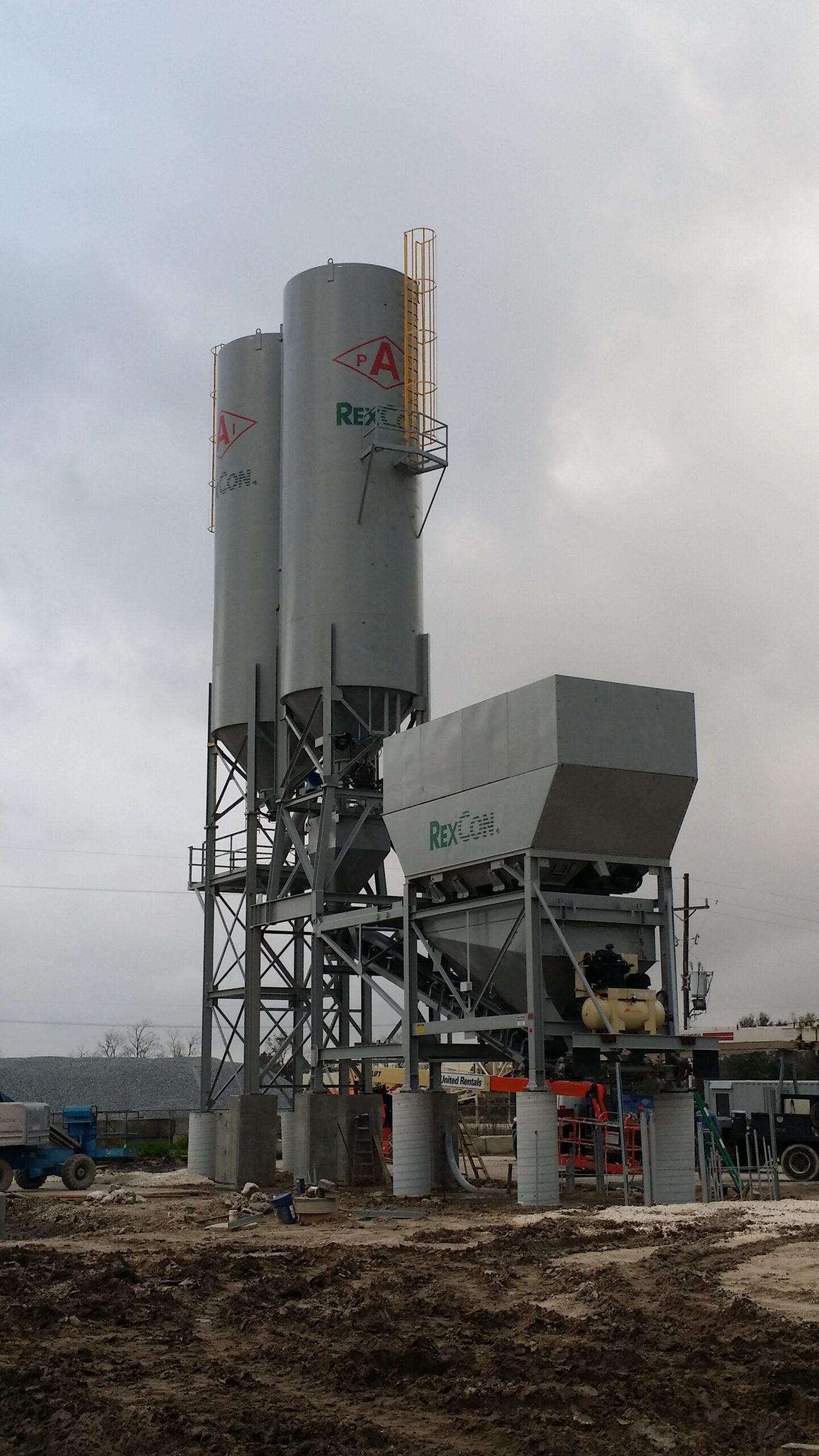

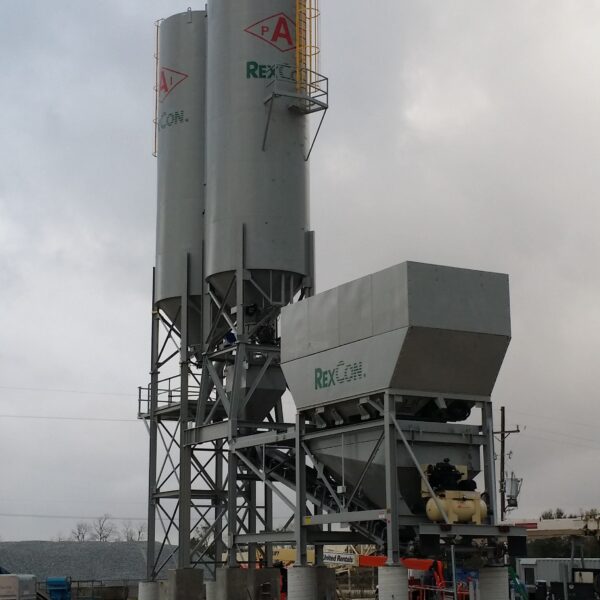

A large industrial concrete batching plant with two tall silos and a rectangular mixing unit, set on a construction site with dirt ground and cloudy skies.
