CON-E-CO® LO-PRO® 427

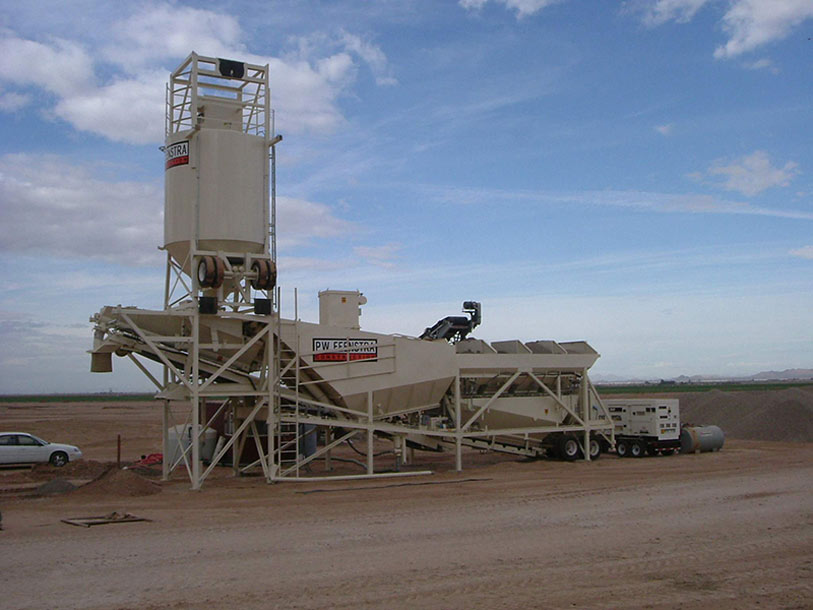

Large portable concrete batch plant with silos and conveyors set up on a dirt lot, with a car parked nearby and open sky above. The equipment is white and appears to be used for mixing and loading concrete.

The LO-PRO plant with larger 427bbl cement capacity designed with future central mix and higher production rates in mind.

Download Brochure
  • 180 degree truck loading
  • Pre-blending Cement Batcher for consistently controllable discharge
  • Live-bottom batcher with vfd proportions aggregate for smooth, clean aggregate discharge
  • Silo and central dust collector can mount on the plant frame, saving significant space and reducing foundation costs
  • Wind farm projects
  • Transit and Central mix
  • Future Central mix needs
  • Portable ready-mix or paving production rates
  • Remote or temporary job sites requiring craneless plant mobilization

Features

  • Aggregate Bins: 50 cubic yard capacity
  • Cement Bin: 427 bbl in-truss capacity with (2) 9″ screws
  • Cement Batcher: LO-PRO blending batcher with 14″ recirculating screw
  • Aggregate Batcher: Live-Bottom 30″ batcher conveyor with VFD

Options

  • 400 BBL to 765 BBL Frame Mounted Auxiliary Cement Silo
  • 90 cubic yard Aggregate Bin capacity
  • 36″ Discharge Conveyor
  • 18″ Cement Batcher Recirculating Screws
  • 12″ in-truss Cement Bin Screws
  • 735 BBL Frame-Mounted Cement II silo
  • Self-Erect Hydraulic Plant Erection with Steel Foundation Pad Hydraulics

Click here for Virtual 3D Model

Real-World Results

A large industrial asphalt mixing plant with multiple silos, conveyors, and metal structures stands on a dirt lot. A white truck is parked in front of the facility under an overcast sky.

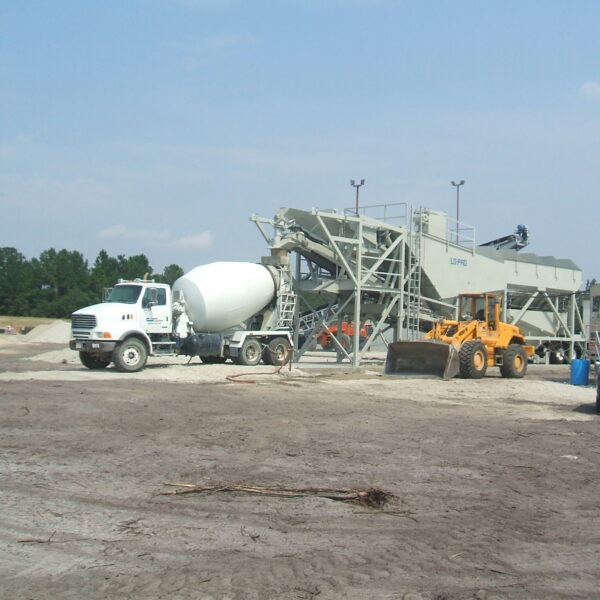

A concrete batch plant with a cement mixer truck, a yellow front loader, and piles of sand and gravel on a construction site under a clear sky. A car and a trailer are parked nearby.
A large cement mixer truck parked next to a large truck.
A yellow front loader sits on a dirt lot near a concrete batching plant with silos, conveyor belts, and a white trailer under a clear sky.
Construction site with cranes, vehicles, and equipment surrounded by fencing. Several mid-rise office buildings are in the background under a cloudy sky.

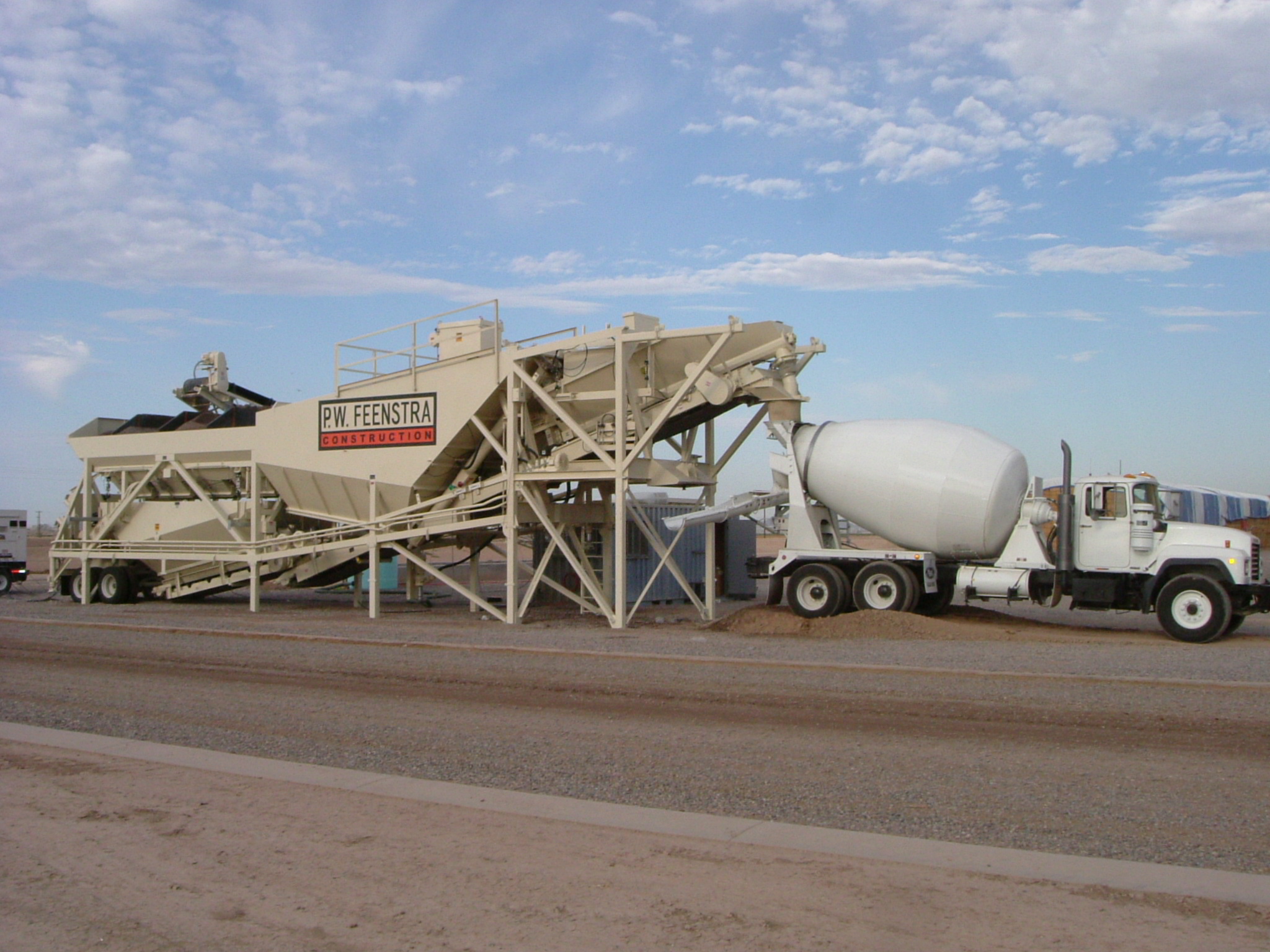

A cement mixer truck is positioned beside a large, industrial concrete batching plant labeled “P.W. Feenstra Construction” under a partly cloudy sky on a gravel lot.

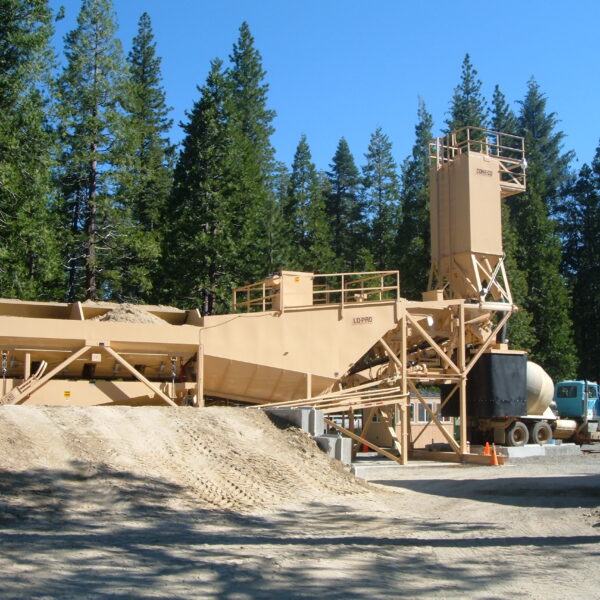

A tan-colored concrete batching plant is set up outdoors near a forest, with piles of sand, processing equipment, and a truck nearby under a clear blue sky.

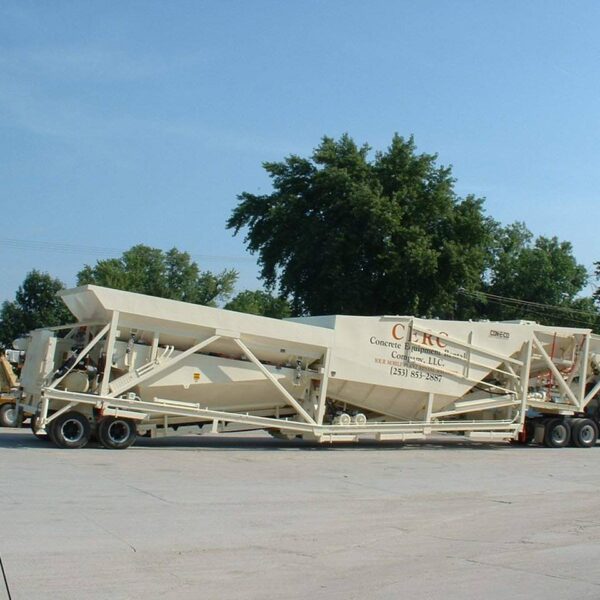

A large portable concrete batch plant mounted on a trailer is parked on a paved lot, surrounded by trees and a blue sky in the background.

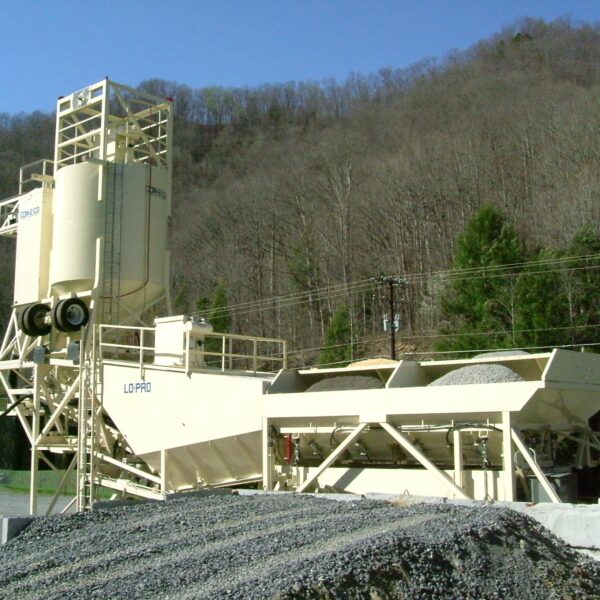

A concrete batching plant with silos, conveyors, and aggregate bins is set up outdoors near a wooded hillside under a clear blue sky. Piles of gravel are visible in the foreground.
