CON-E-CO® LO-PRO® 327D

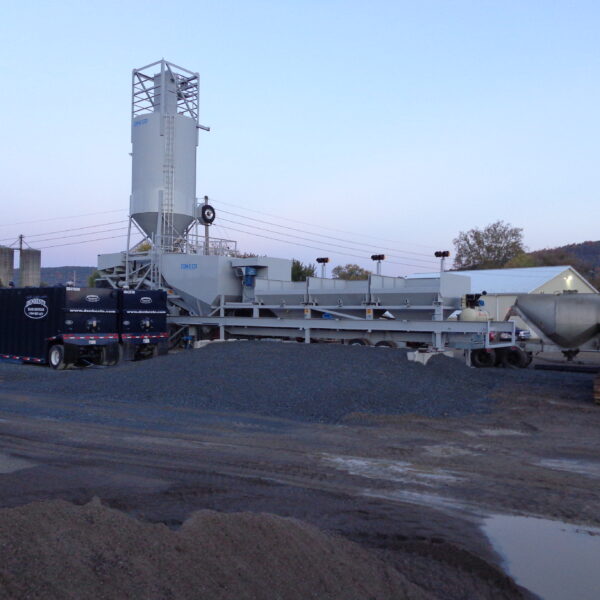

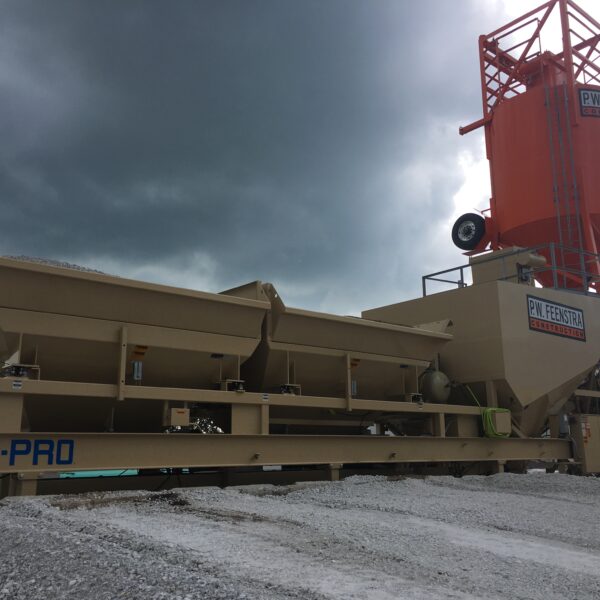

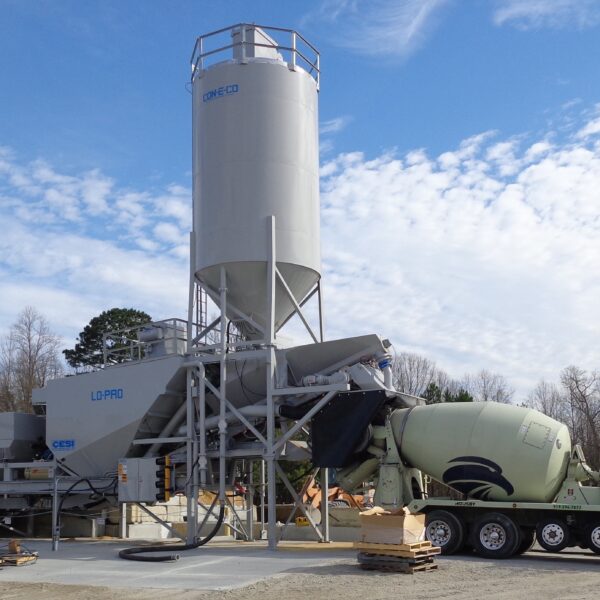

A large industrial cement gravel and sand mixing portable concrete batch plant for mixing concrete with ready mix trucks sits on dirt under a cloudy sky, surrounded by open fields.

The perfect low-profile decumulative plant with up to four aggregate batchers, two cements, and a central dust collector within a single frame.

  • 180 degree truck loading
  • Pre-blending Cement Batcher for consistently controllable discharge
  • Live-bottom batcher with vfd proportions aggregate for smooth, clean aggregate discharge
  • Silo and central dust collector can mount on the plant frame, saving significant space and reducing foundation costs
  • Wind farm projects
  • Low-Profile Aggregate feed
  • Portable ready-mix or paving production rates

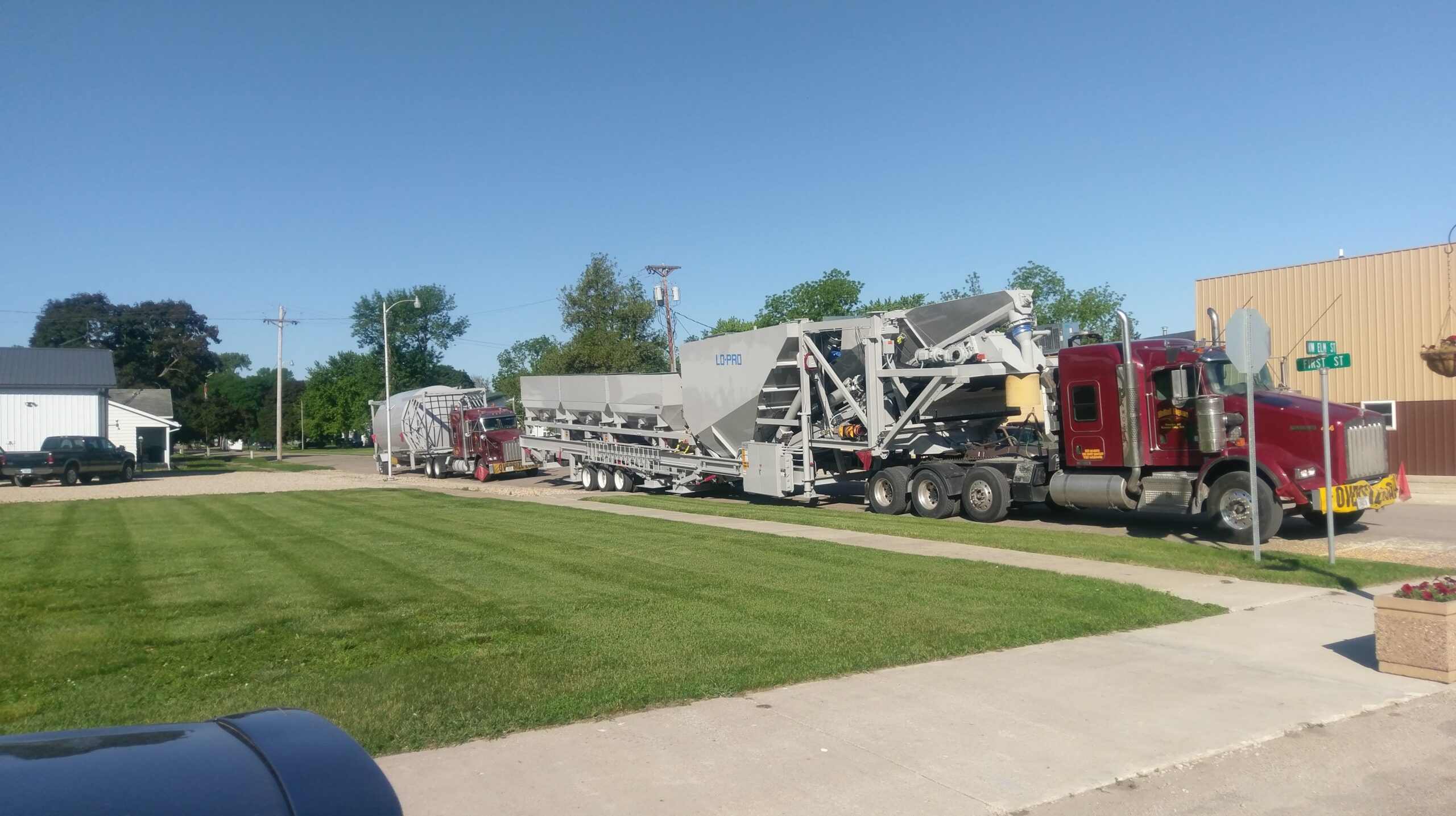

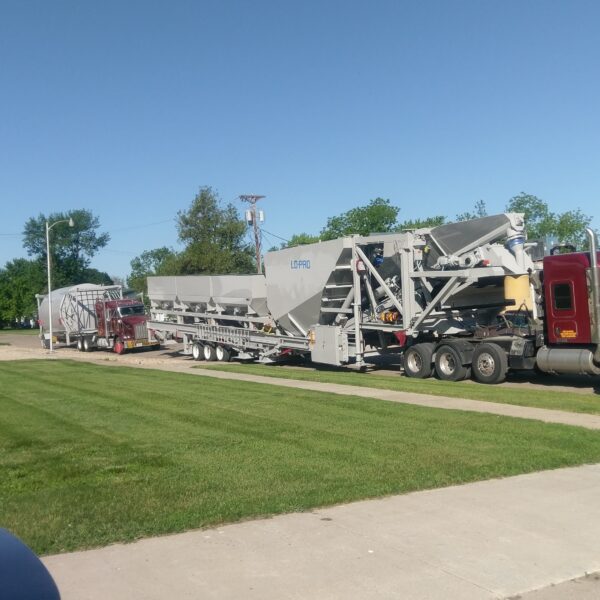

  • Remote or temporary job sites requiring craneless plant mobilization

Features

  • Aggregate Batchers: 1 to 4 weighing bins available
  • Cement Bin: 327 bbl in-truss capacity with (2) 9″ screws
  • Cement Batcher: LO-PRO blending batcher with 14″ recirculating screw
  • Aggregate Batcher: 36″ discharge conveyor with VFD

Options

  • In-truss or  Frame Mounted Central Dust
  • Individual feed conveyors for blazing fast production rates
  • 400 BBL to 735 BBL Frame Mounted Auxiliary Cement Silo
  • 12″ in-truss Cement Bin Screws
  • 735 BBL Frame-Mounted Cement II silo
  • Self-Erect Hydraulic Plant Erection with Steel Foundation Pad Hydraulics
