CON-E-CO® LO-PRO® 327CM

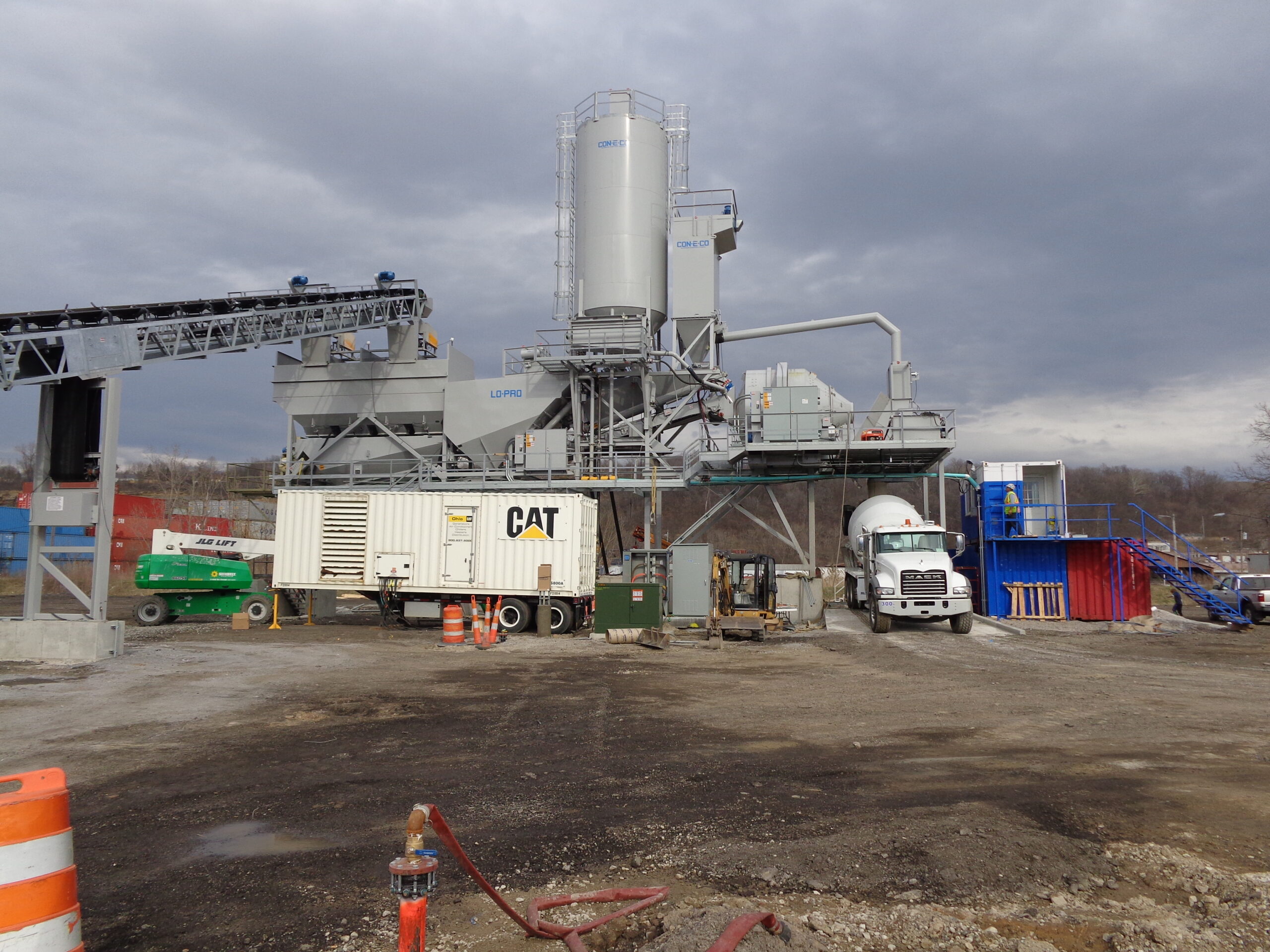

A construction site with large industrial high production con-e-co concrete plant central mix wet batch equipment, including silos, a conveyor belt, a white CAT generator trailer, green lift, orange traffic barrels, and a white truck, under a cloudy sky.

The central mix solution with a maximum 36″ batch belt with self-erecting capability for sites not needing the production rating of the LO-PRO 427® CM

Download Brochure
  • 180 degree truck loading
  • Pre-blending Cement Batcher for consistently controllable discharge
  • Live-bottom batcher with vfd proportions aggregate for smooth, clean aggregate discharge
  • Silo and central dust collector can mount on the plant frame, saving significant space and reducing foundation costs
  • Optimal as a Dry Now, Wet Later
  • Central mix Sites with ease of conversion to Transit Mix
  • Portable ready-mix production rates
  • Remote or temporary job sites requiring craneless plant mobilization
  • Self-Erect Remote Plant and Central Mixer plant site with a 12’9 discharge to the mixer dump cone

Features

  • Aggregate Bins: 43 cubic yard capacity
  • Cement Bin: 327 bbl in-truss capacity with (2) 9″ screws
  • Cement Batcher: LO-PRO blending batcher with 18″ recirculating screw
  • Aggregate Batcher: Live-Bottom 36″ batcher conveyor with VFD
  • Tilt Mixer: 12 cubic yard tilt mixer

Options

  • 83 cubic yard Aggregate Bin capacity
  • Plant Mounted Central or Mixer Dust Collector
  • 400 BBL to 735 BBL Frame-Mounted Cement II silo
  • Self-Erect Hydraulic Plant ad Mixer Erection with Steel Pad Hydraulics

Real-World Results

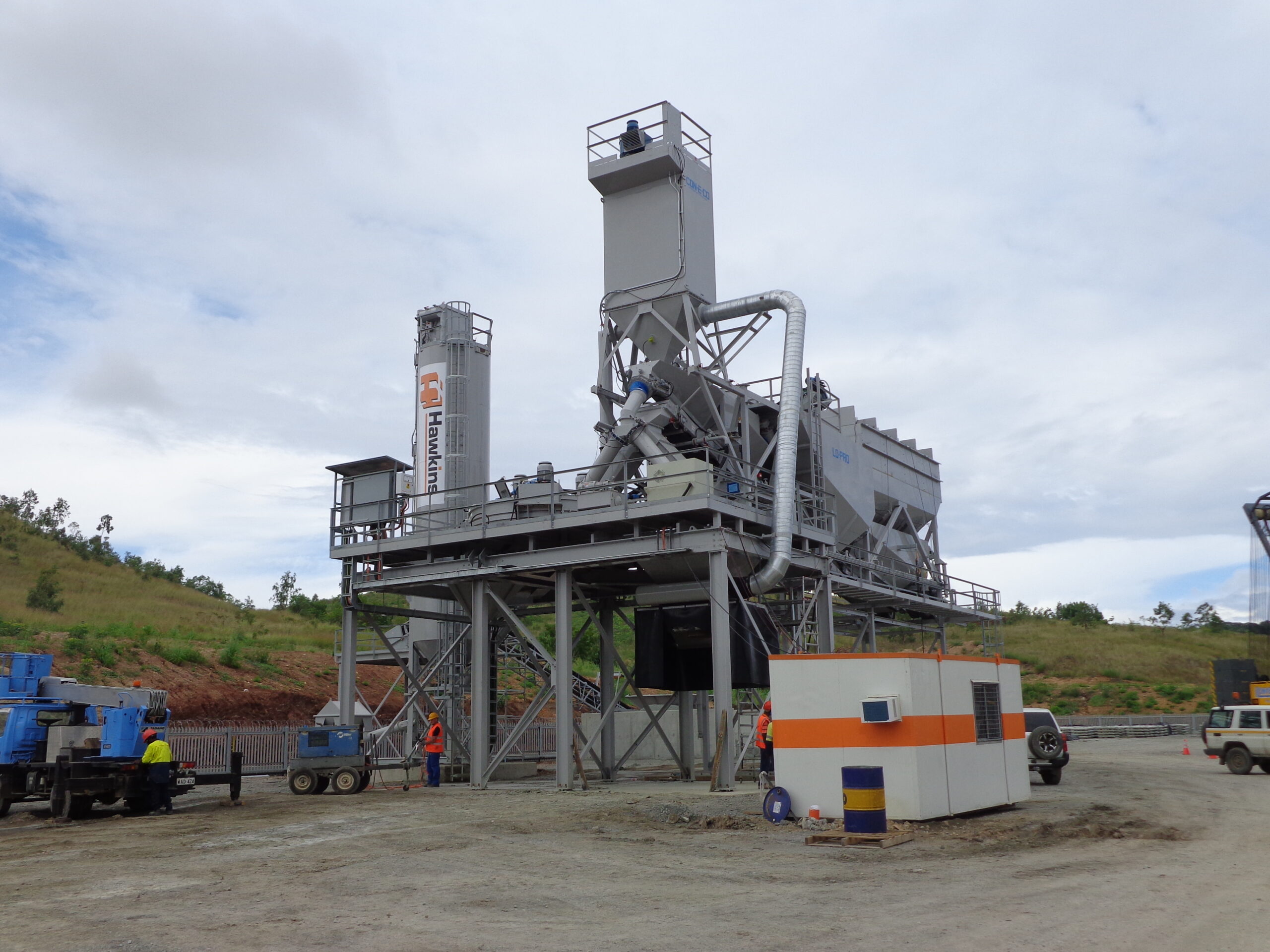

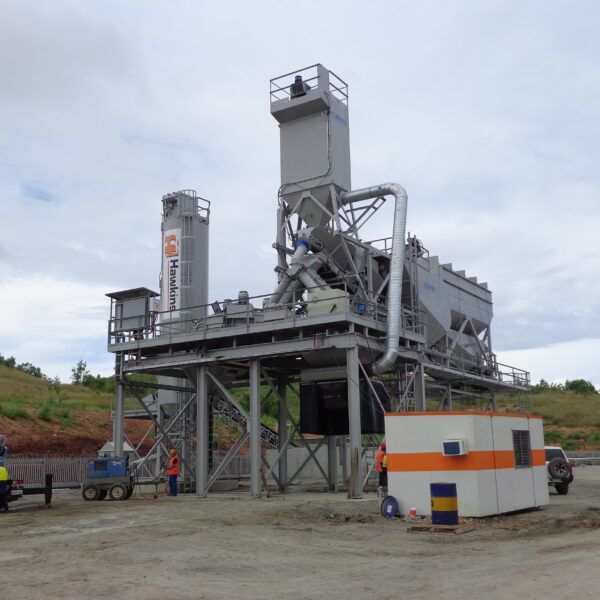

A large asphalt mixing plant with silos and machinery on a construction site. Workers in safety gear and equipment, including a generator and vehicles, are visible around the structure. Trees and cloudy sky in the background.

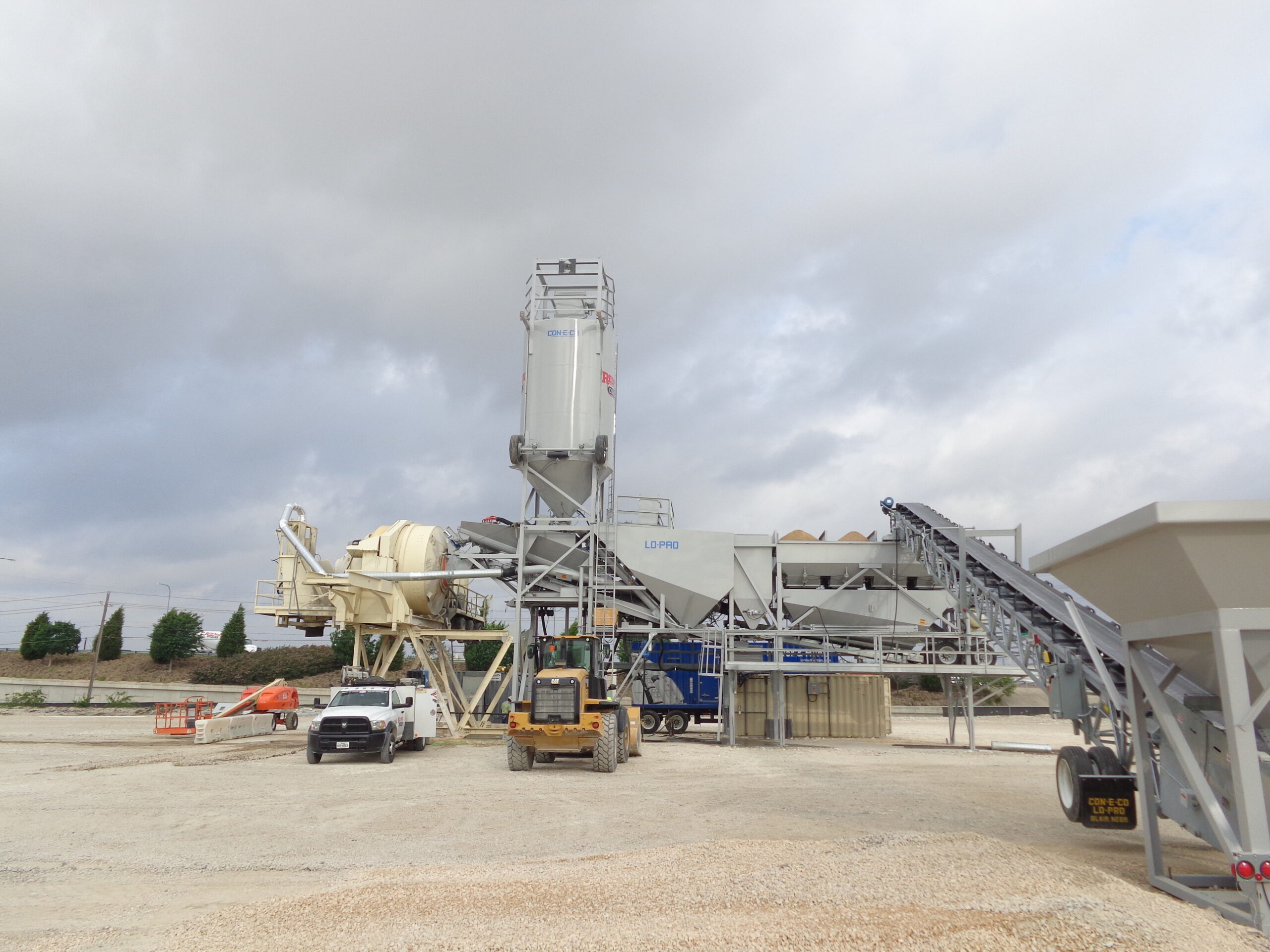

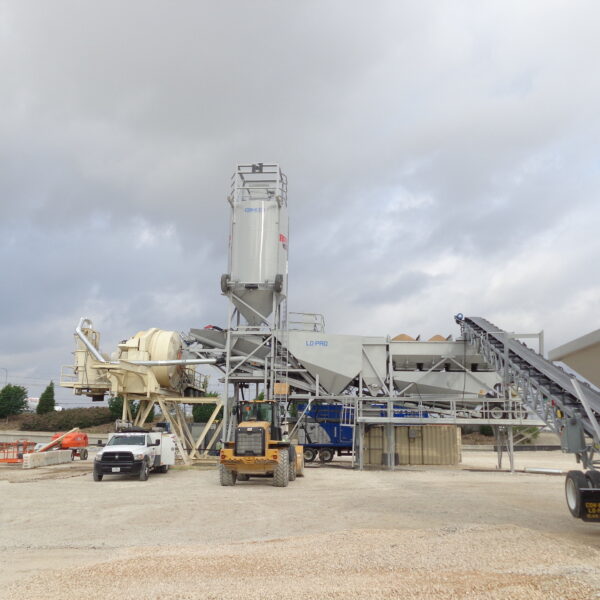

A concrete batching plant with large machinery, including silos, conveyors, trucks, and construction equipment, set on a gravel lot under a cloudy sky. Trees and a fence are visible in the background.
Industrial asphalt plant with large silos, conveyor belts, machinery, a white truck, and construction equipment on a dirt lot under a cloudy sky. Orange traffic barrels and barriers are visible in the foreground.
A LO-PRO 327CM concrete batching plant with conveyor belts, metal structures, and two white trucks parked on rocky ground under a clear blue sky.

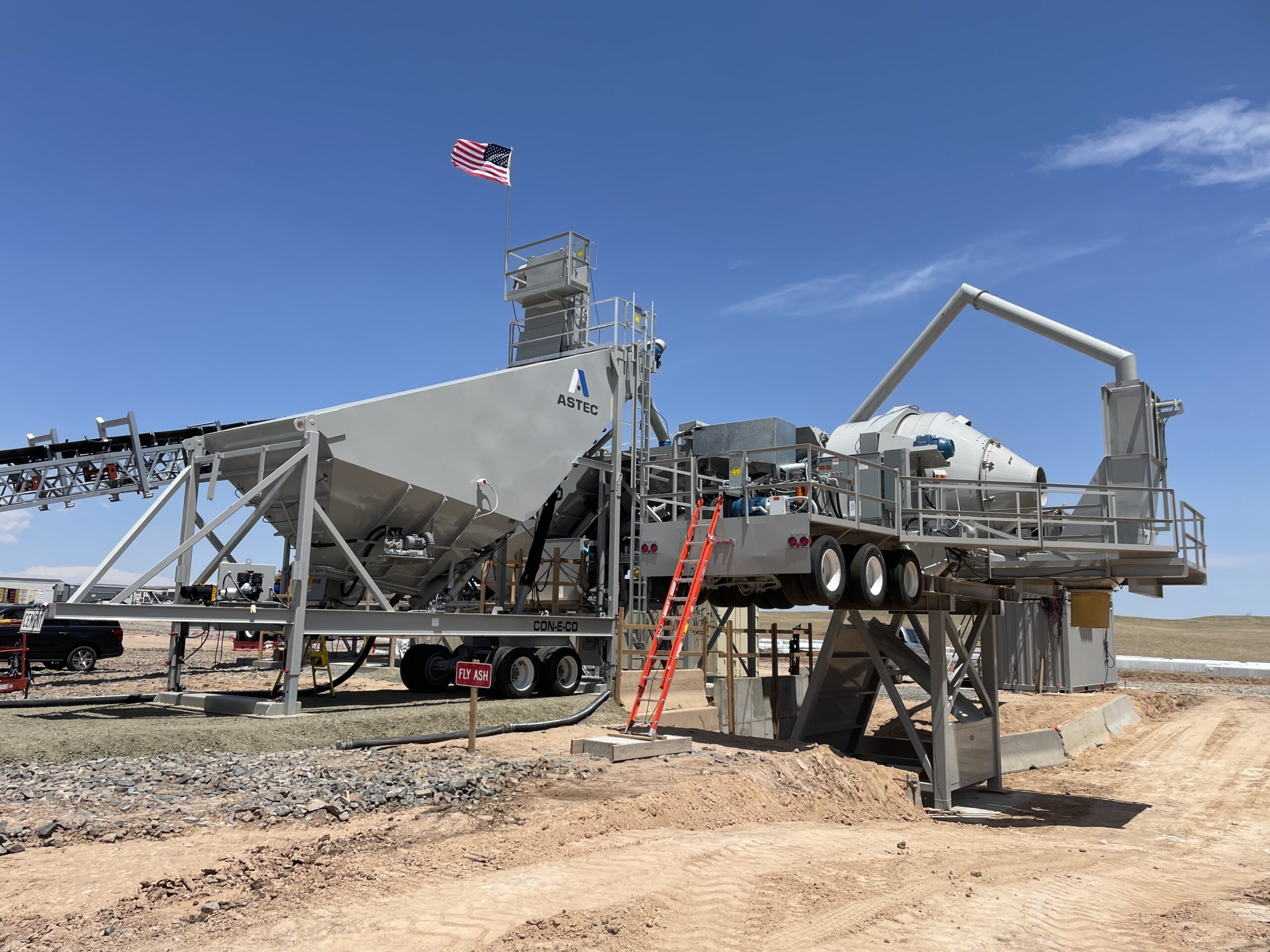

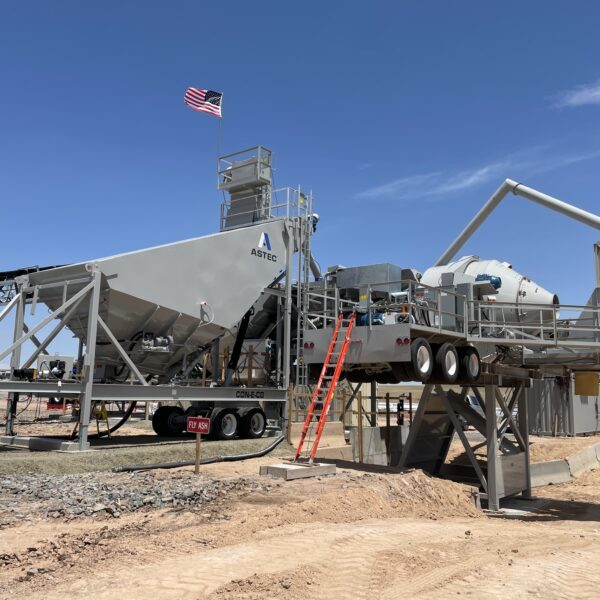

A large, mobile concrete mixing plant with an American flag flying on top stands on a construction site under a clear blue sky. Conveyor belts and ladders are visible, with dirt and machinery in the foreground.
