CON-E-CO® LO-PRO® 12 RS D

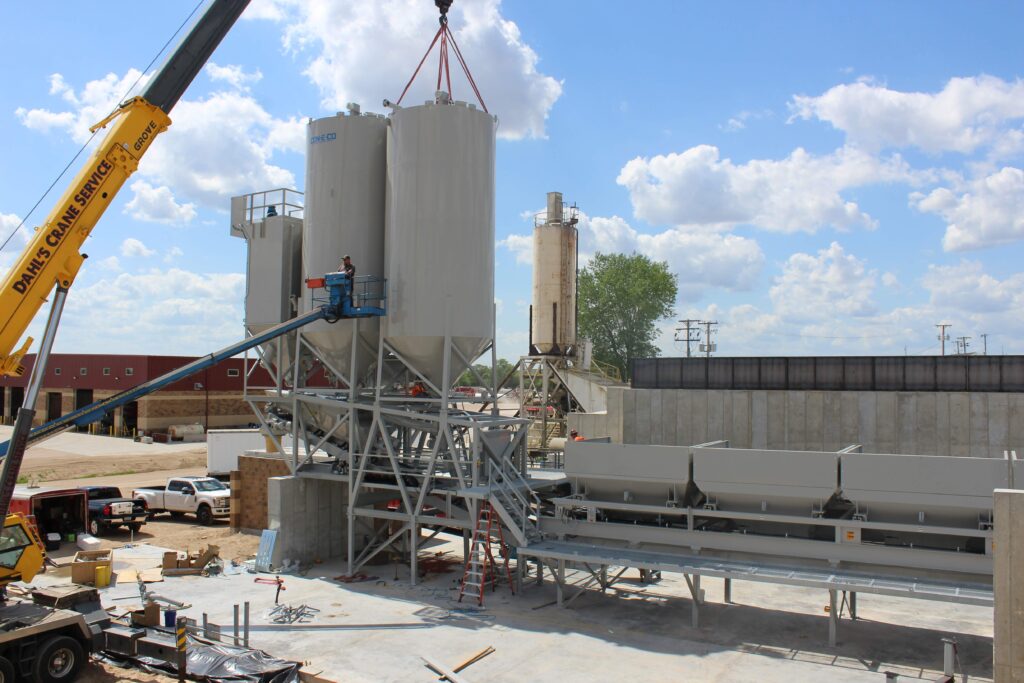

A crane lifts a large cylindrical tank onto a metal structure at an industrial construction site of a concrete batch plant, while a worker on a lift assists. Buildings, vehicles, and equipment are visible under a partly cloudy sky.

The Stationary Low Profile Decumulative plant with up to five aggregate scales and four cements compartments to 2,460 bbl for loader fed or short conveyor fed aggregate.

Download Brochure
  • 180 degree truck loading
  • Pre-blending Cement Batcher for consistently controllable discharge
  • Live-bottom batcher with vfd proportions aggregate for smooth, clean aggregate discharge
  • Two Split Cement Silos with plant and screw work platforms built-into the design
  • Up to Five Decumulative Aggregate Batchers
  • Transit mix
  • Stationary ready-mix production

Features

  • Aggregate Batchers:  18 cubic yard heaped capacity – up to five with gated bottom
  • Cement Silo: Two frame mounted 400 bbl each minimum in-truss capacity with (2) 9″ screws
  • Cement Batcher: LO-PRO blending batcher with 14″ recirculating screw

Options

  • 270 cubic yard Aggregate Bin capacity
  • 36″ Discharge Conveyor
  • 18″ Recirculating batcher discharge Screw
  • 12″ Feeder Screw
  • Up to 2,460 BBL Cement Silos capacity across four compartment Frame-Mounted Cement II silo
  • Up to Five 24″ feed conveyors with integrated 18.5 cubic yard hoppers
  • Sand Bin with live-bottom aggregate batcher

Real-World Results

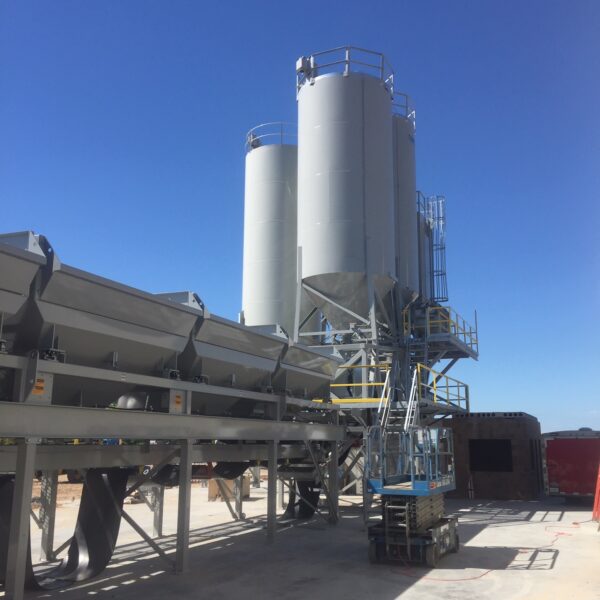

Large industrial silos and metal equipment under a clear blue sky, with platforms, ladders, and walkways, set on a concrete surface at an outdoor industrial site.

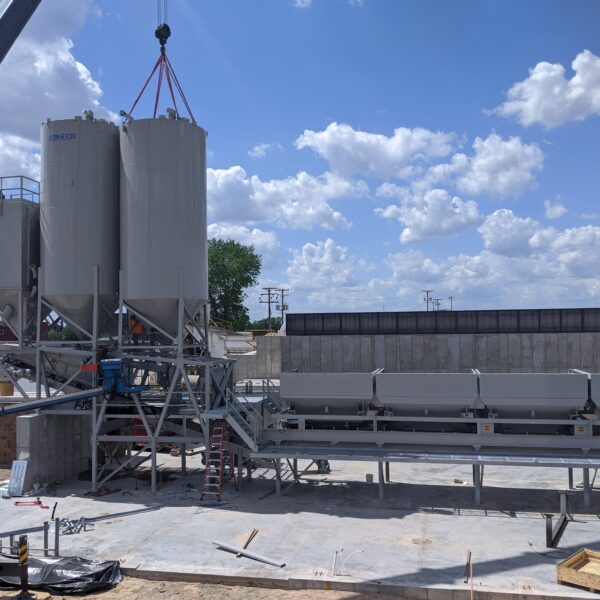

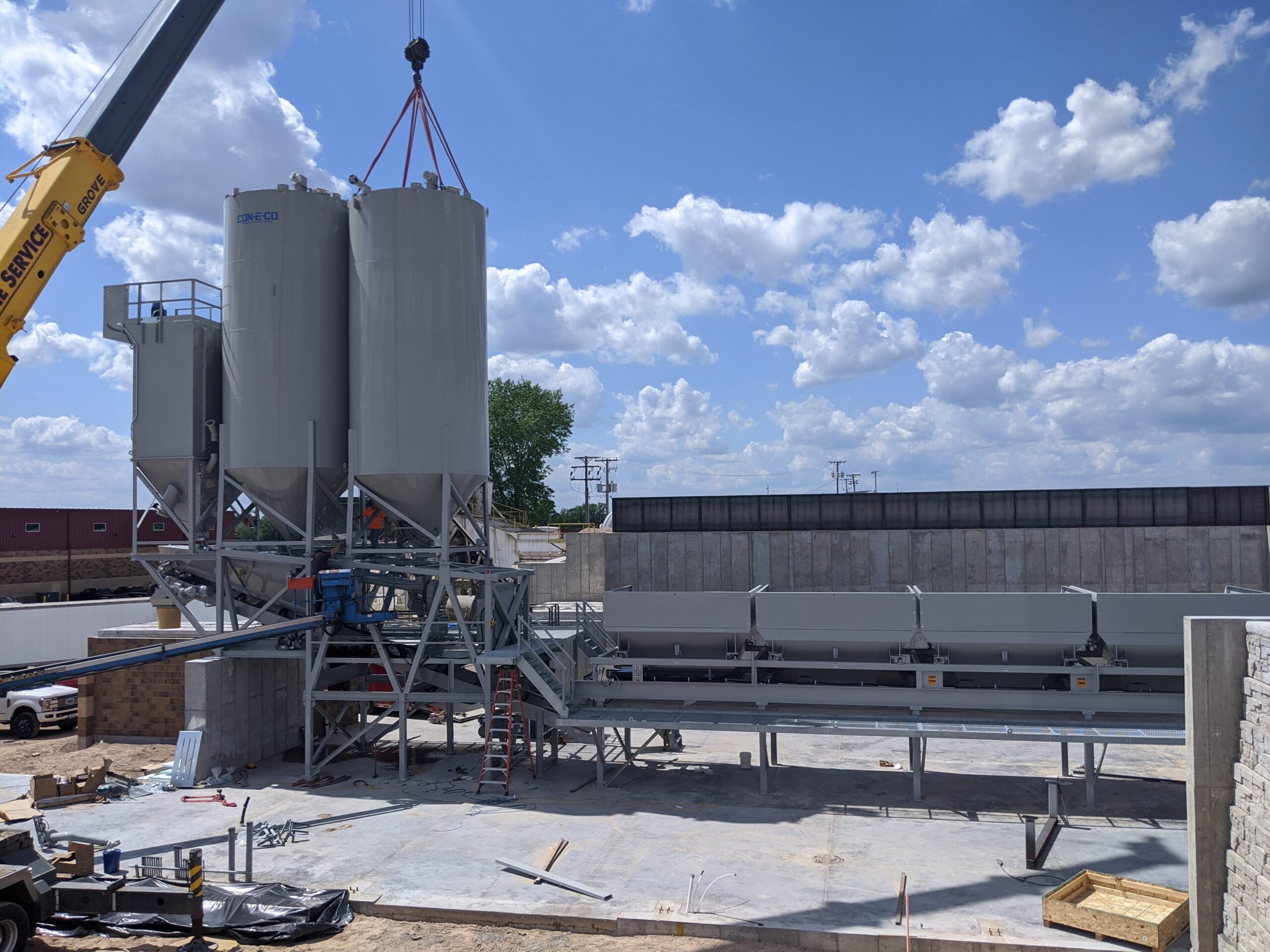

A construction site features large vertical silos being installed by a crane, with a conveyor system and workers present. The sky is blue with scattered clouds, and various equipment and materials are visible on the ground.

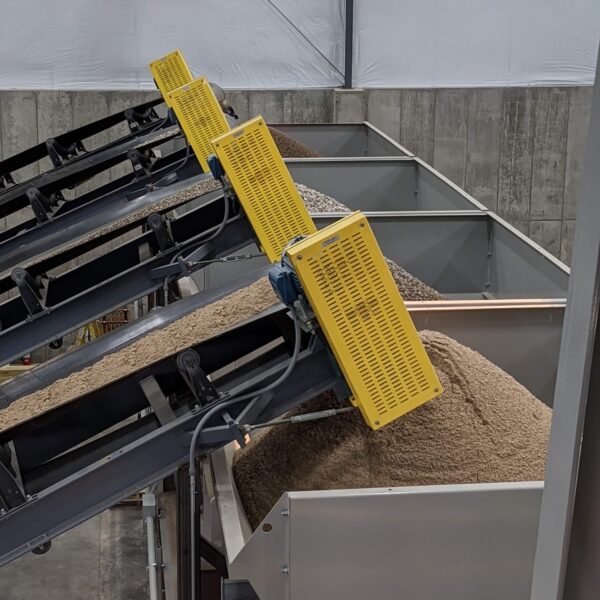

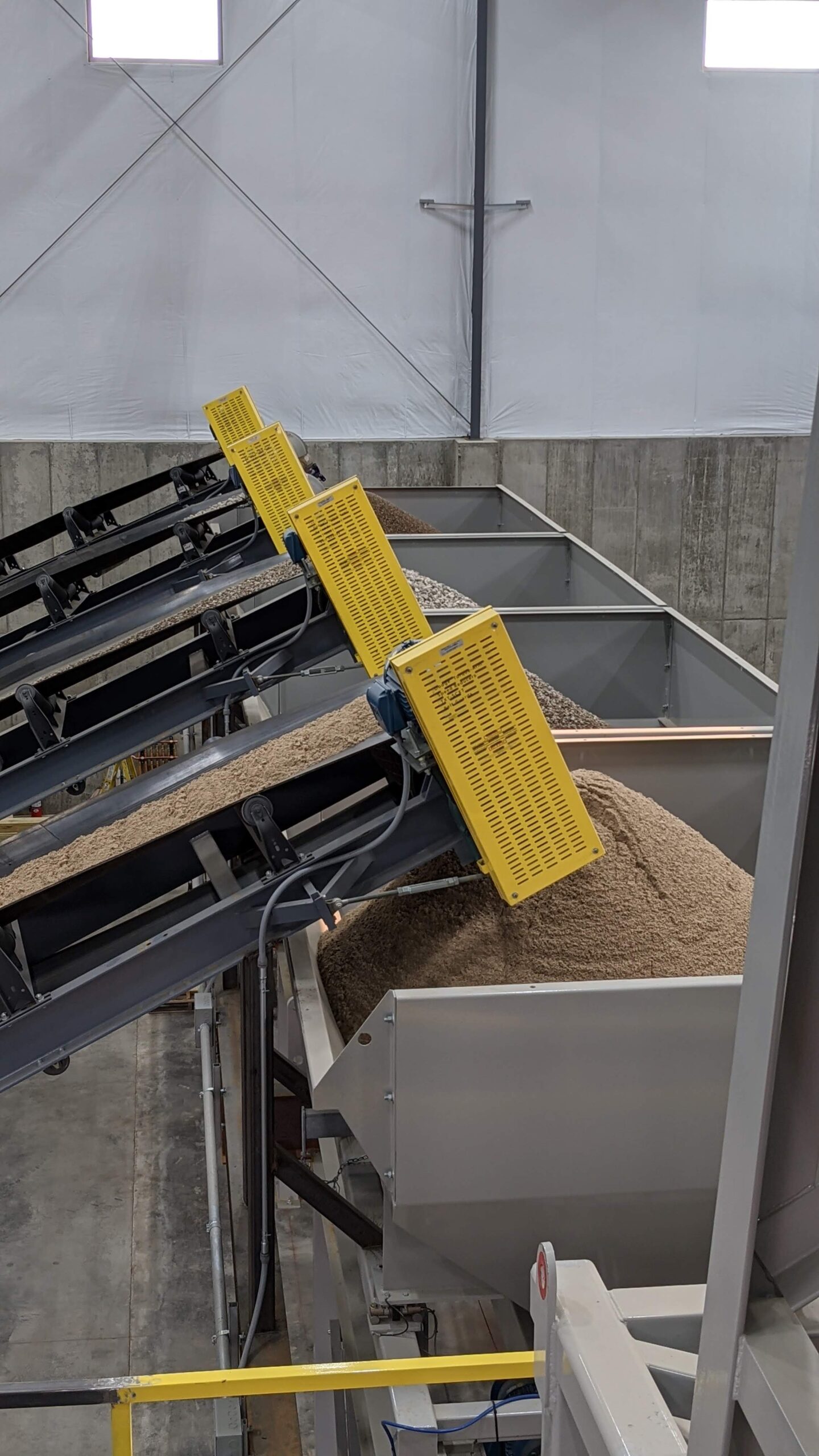

Several conveyor belts with yellow safety guards transport granular material into large metal storage bins inside an industrial facility with concrete walls and a high, white ceiling.

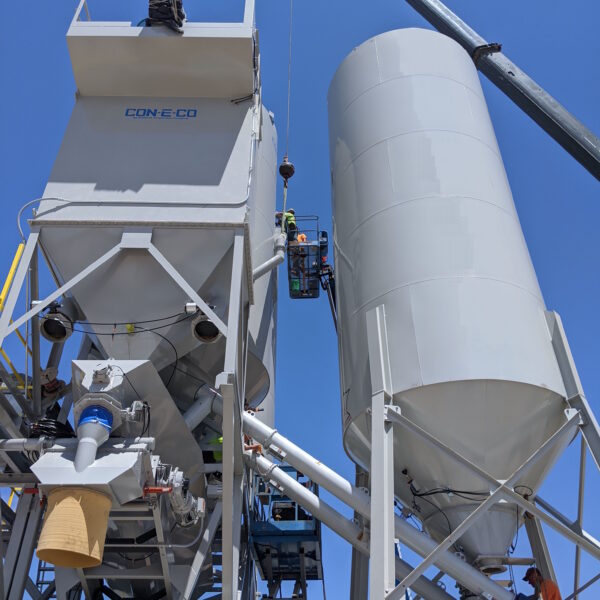

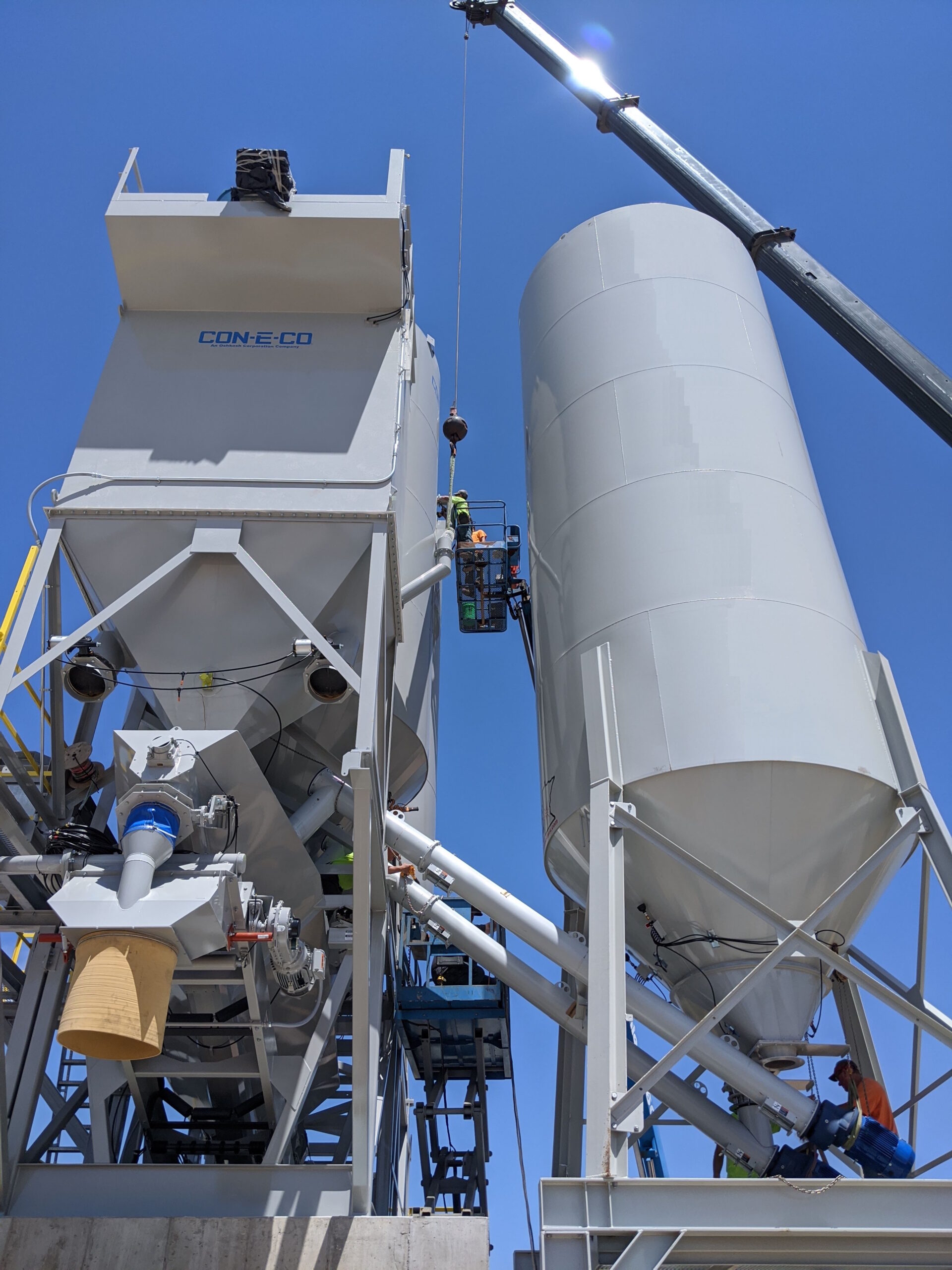

Two workers in safety gear work on large industrial silos and a concrete plant machinery under a clear blue sky, using a crane and scaffolding for access and support.
